Unit Inspection

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Preparation tool: Circuit tester

  1. Check the resistance between in-vehicle sensor terminals.
    CAUTION: During inspection, be careful not to touch the sensor end in order to avoid misjudgment due to body temperature.

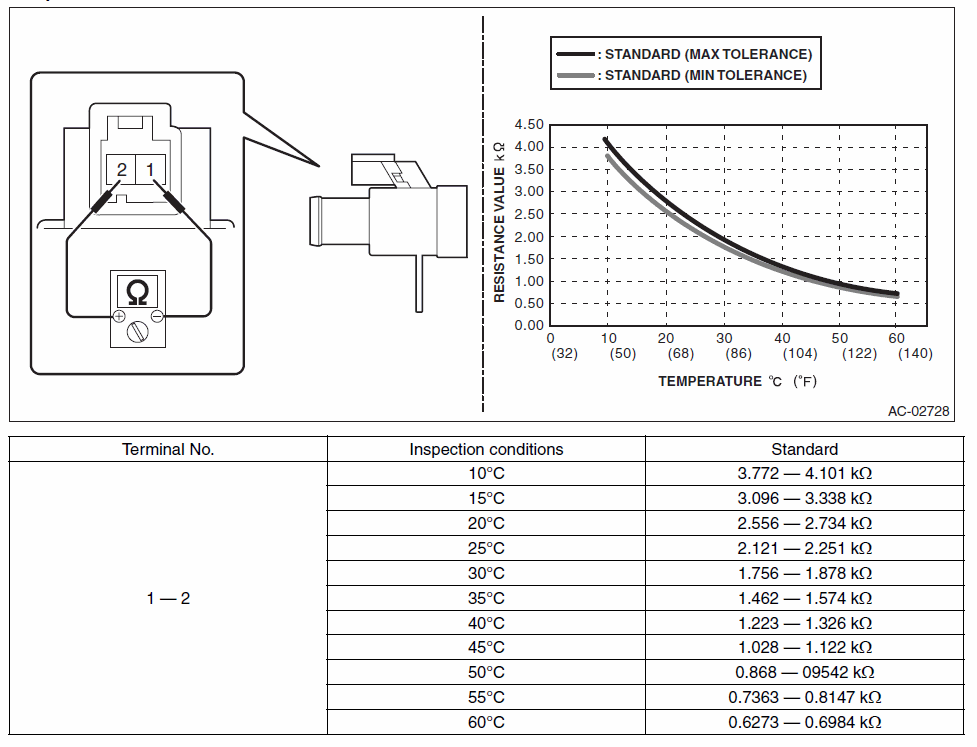

    Fig 1: Checking Resistance Between In-Vehicle Sensor Terminals And Graph
    G00522832Courtesy of SUBARU OF AMERICA, INC.
  2. Replace the in-vehicle sensor if the inspection result is not within the standard value.
