Center And Rear Brake Pipes & Hoses

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

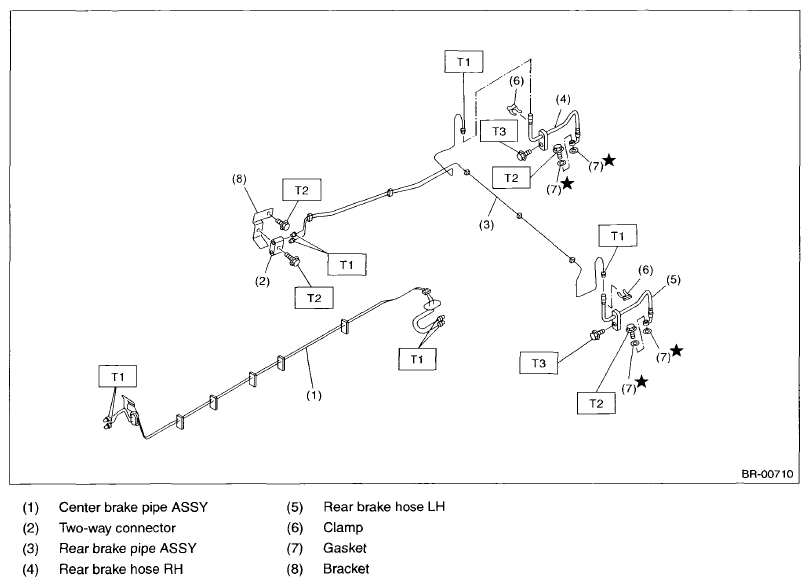

Fig 1: Center And Rear Brake Pipes & Hoses Components With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque. N.m (kgf-m, ft-lb)

T1: 15 (1.53, 11.1)

T2: 18 (1.84, 13.3)

T3: 33 (3.36, 24.3)
