Check Sport Shift Indicator: Wiring Diagram

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

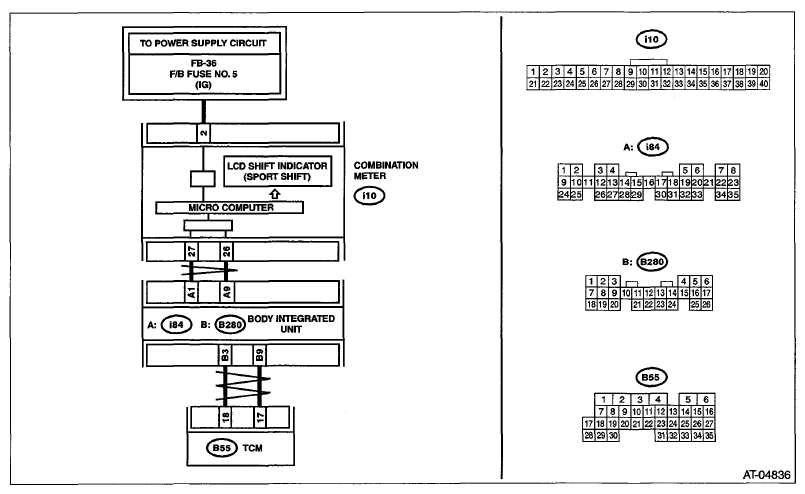

Fig 1: Sport Shift Indicator Wiring Diagram
G07665860Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSTIC PROCEDURE CHART

Step Check Yes No
1 CHECK BODY INTEGRATED UNIT.
Check the DTC of the body integrated unit.		 Is DTC of CAN communication displayed? Perform diagnosis according to the DTC. Go to step 2  .
2 CHECK TCM.
  1. Turn the ignition switch to OFF.
  2. Connect the Subaru Select Monitor to data link connector.
  3. Turn the ignition switch to ON.
  4. Run the Subaru Select Monitor.
  5. Shift the select lever to the SPORT mode side.
  6. Read the "Gear Position" data of TCM using Subaru Select Monitor.
 Is the gear position "1"? Go to step 3.  Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . >
3 CHECK TCM.
  1. Shift the select lever up.
  2. Read the "Gear Position" data of TCM using Subaru Select Monitor.
 Is the gear position "2"? Go to step 4.  Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . >
4 CHECK BODY INTEGRATED UNIT.
Using the Subaru Select Monitor, read the data of "Shift Position".		 Is "2" displayed? Go to step 5.  Check body integrated unit.
5 CHECK COMBINATION METER.
< Ref. to INSPECTION , Combination Meter System. >		 Is the SPORT shift indicator OK? Check the buzzer. < Ref. to CHECK BUZZER , Diagnostic Procedure without Diagnostic Trouble Code (DTC). > Replace the combination meter assembly. < Ref. to COMBINATION METER . >
