DTC P0724 Brake Switch Circuit High: Wiring Diagram

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

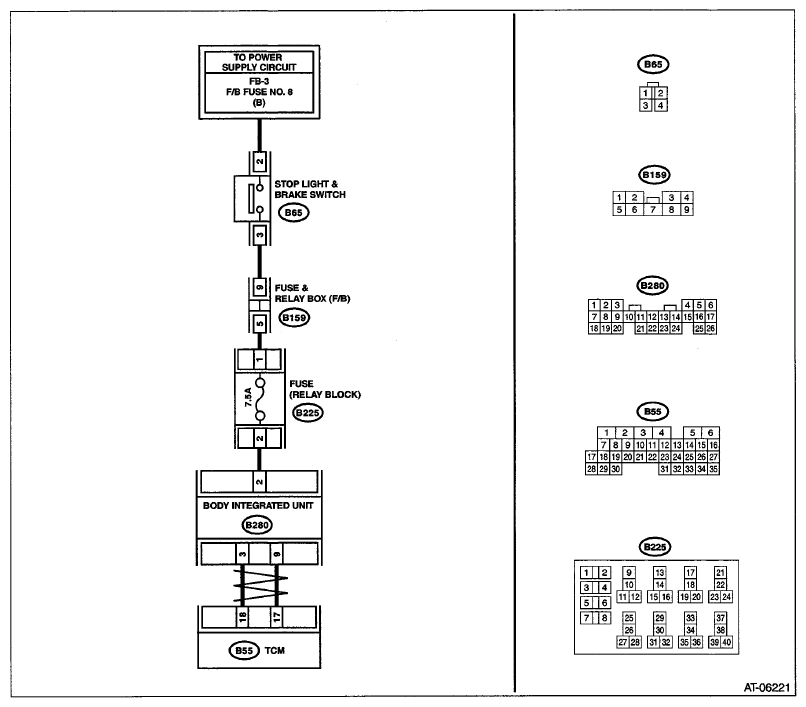

Fig 1: Brake Switch Wiring Diagram
G07665848Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSTIC PROCEDURE CHART

Step Check Yes No
1 CHECK DTC.  Is DTC of CAN communication displayed? Perform the diagnosis according to DTC. Go to step 2  .
2 CHECK BODY INTEGRATED UNIT.
  1. Turn the ignition switch to OFF.
  2. Connect the Subaru Select Monitor to data link connector.
  3. Turn the ignition switch to ON.
  4. Run the Subaru Select Monitor.
  5. Read the data of "Stop Light Switch" using Subaru Select Monitor. < Ref. to OPERATION , Subaru Select Monitor. >
 Is "OFF" displayed? Go to step 3.  Go to step 4  .
3 CHECK TCM.
Read the data of "Stop Light Switch" using Subaru Select Monitor. < Ref. to OPERATION , Subaru Select Monitor. >		 Is "OFF displayed? Check for poor contact in connectors or harnesses, and repair the defective part. Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . >
4 CHECK BODY INTEGRATED UNIT.
  1. Disconnect the harness connector of body integrated unit.
  2. Measure the voltage of harness between body integrated unit and stop light switch.

    Connector & terminal

    (B280) No. 2 (+) - Chassis ground (-):

 Is the voltage 10 V or more? Go to step 5.  Go to step 7  .
5 CHECK STOP LIGHT SWITCH.
  1. Turn the ignition switch to OFF.
  2. Disconnect the connector from stop light switch.
  3. Measure the resistance of harness between stop light switch connectors.

    Connector & terminal

    (B65) No. 2 - No. 3:

 Is the resistance 1 MΩ or more? Go to step 6.  Replace the stop light switch.
6 CHECK HARNESS CONNECTOR BETWEEN BODY INTEGRATED UNIT AND STOP LIGHT SWITCH.
  1. Turn the ignition switch to ON.
  2. Measure the voltage of harness between the body integrated unit and chassis ground.

    Connector & terminal

    (B280) No. 2 (+) - Chassis ground (-):

 Is the voltage less than 1 V? Go to step 7.  Repair the short circuit of harness between body integrated unit and stop light switch.
7 CHECK FOR POOR CONTACT.  Is there poor contact of input signal of brake switch? Repair the poor contact. Check body integrated unit.
