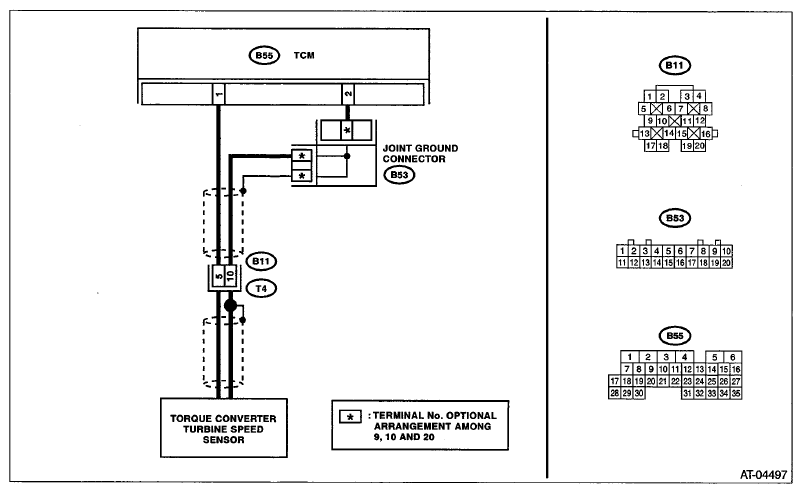

DTC P0715 Input/Turbine Speed Sensor Circuit: Wiring Diagram
WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
DIAGNOSTIC PROCEDURE CHART
| Step | Check | Yes | No |
|---|---|---|---|
1 CHECK TORQUE CONVERTER TURBINE SPEED SENSOR.
Connector & terminal (T4) No. 5 - No. 10: |
Is the resistance 450 - 650 Ω? | Go to step 2. | Replace the torque converter turbine speed sensor. < Ref. to TORQUE CONVERTER TURBINE SPEED SENSOR . > |
2 CHECK HARNESS CONNECTOR BETWEEN TCM AND TRANSMISSION.
Connector & terminal (B55) No. 1 - (B11) No. 5: (B55) No. 2 - (B11) No. 10: |
Is the resistance less than 1 Ω? | Go to step 3. | Repair the open circuit of harness between TCM and transmission connector, and poor contact of the connector. |
| 3 CHECK HARNESS CONNECTOR BETWEEN TCM AND TRANSMISSION. Measure the resistance of harness between TCM connector and chassis ground. Connector & terminal (B55) No. 1 - Chassis ground: (B55) No. 2 - Chassis ground: |
Is the resistance 1 MΩ or more? | Go to step 4. | Repair the short circuit of harness between TCM and transmission connector. |
4 CHECK INPUT SIGNAL FOR TCM.
|
Are the "Turbine Revolution Speed" and "Engine Speed" almost the same? | Check the harnesses or connectors between TCM and transmission, and repair the defective part. | Go to step 5 . |
| 5 CHECK FOR POOR CONTACT. | Is there poor contact of torque converter turbine speed sensor circuit? | Repair the poor contact. | Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . > |
