Clutch Pipe And Hose

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

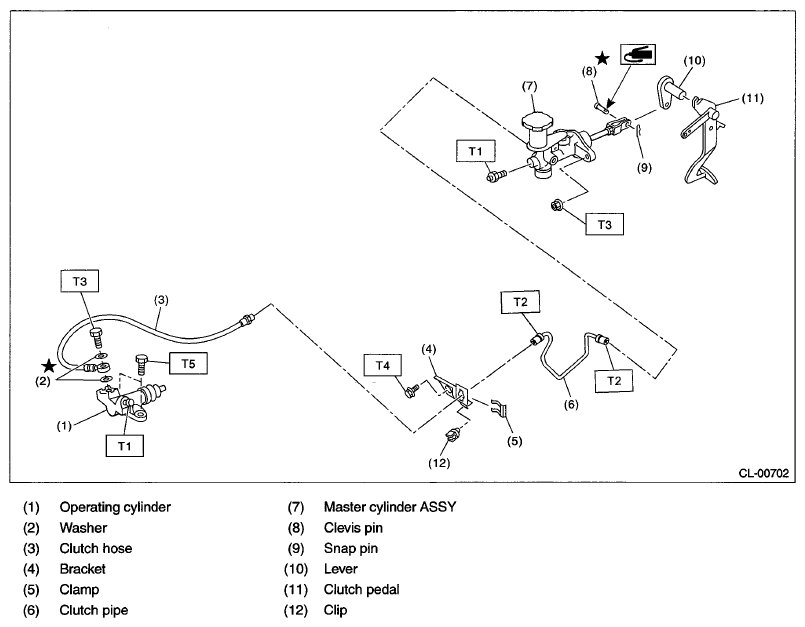

Fig 1: Exploded View Of Clutch Pipe And Hose With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.8(0.8, 5.8)

T2: 15(1.5, 11.1)

T3: 18 (1.8, 13.3)

T4: 25(2.5, 18.4)

T5: 37(3.8, 27.3)
