Water Pump Pulley

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.

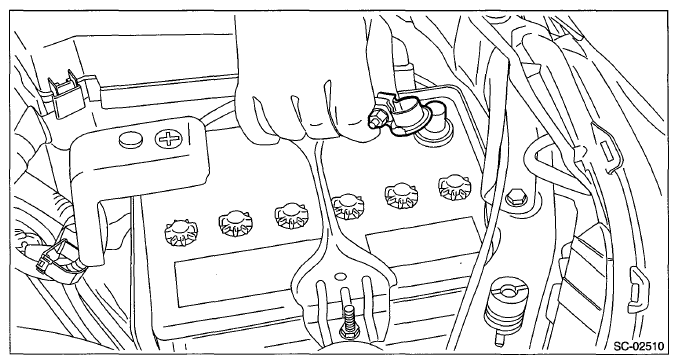

    Fig 1: Disconnecting Ground Cable From Battery
    G07665020Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the V-belts. < Ref. to REMOVAL , V-belt. >
  3. Remove the main fan motor assembly. < Ref. to REMOVAL , Radiator Main Fan and Fan Motor. >
  4. Lift up the vehicle.
  5. Remove the under cover. < Ref. to REMOVAL , Front Under Cover. >
  6. Remove the water pump pulley using the ST. ST1 18355AA000 PULLEY WRENCH

    ST2 18334AA030 PULLEY WRENCH PIN SET

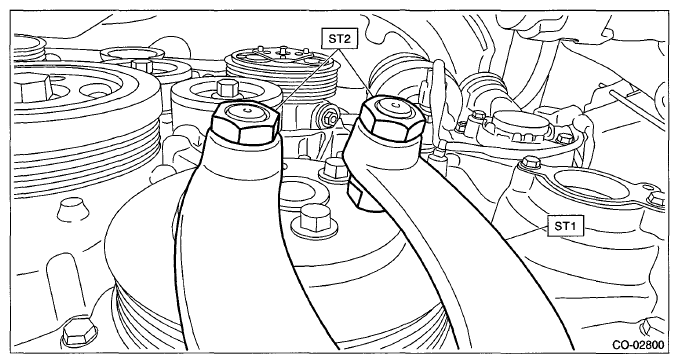

    Fig 2: Removing Water Pump Pulley Using ST
    G07665021Courtesy of SUBARU OF AMERICA, INC.
