Water Pump Pulley

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Using the ST, install the water pump pulley.
ST1 18355AA000 PULLEY WRENCH

ST2 18334AA030 PULLEY WRENCH PIN SET

Tightening torque:

14 N.m (1.4 kgf-m, 10.3 ft-lb)

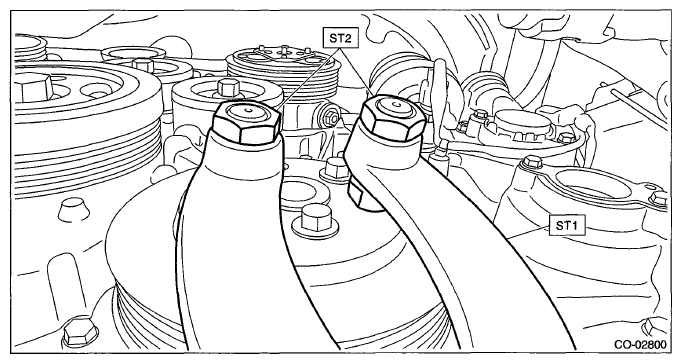

Fig 1: Installing Water Pump Pulley Using ST
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. < Ref. to INSTALLATION , Front Under Cover. >
Lower the vehicle.
Install the main fan motor assembly. < Ref. to INSTALLATION , Radiator Main Fan and Fan Motor. >
Install the V-belts. < Ref. to INSTALLATION , V-belt. >
Connect the battery ground terminal.

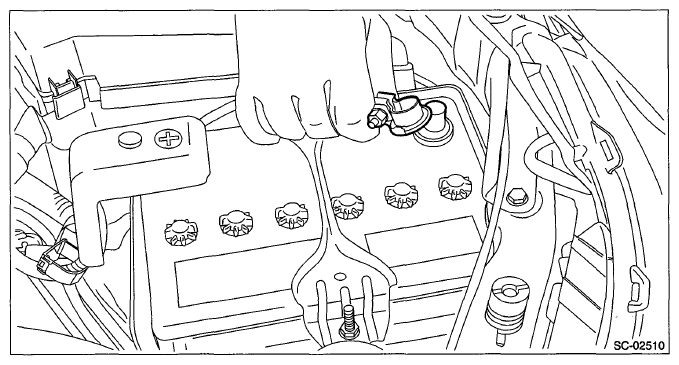

Fig 2: Connecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
