Radiator Sub Fan and Fan Motor: Removal

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

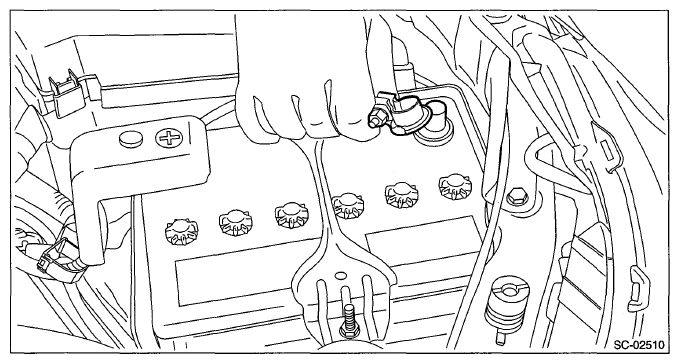

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct (Rear). < Ref. to REMOVAL , Air Intake Duct. >

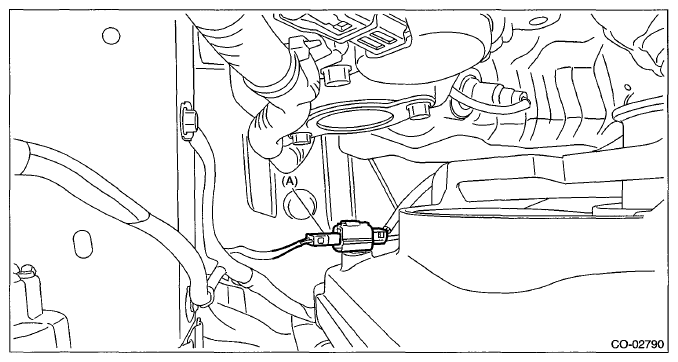

Disconnect the connector (A) from the sub fan motor assembly.

Fig 2: Sub Fan Motor Assembly Connector
Courtesy of SUBARU OF AMERICA, INC.

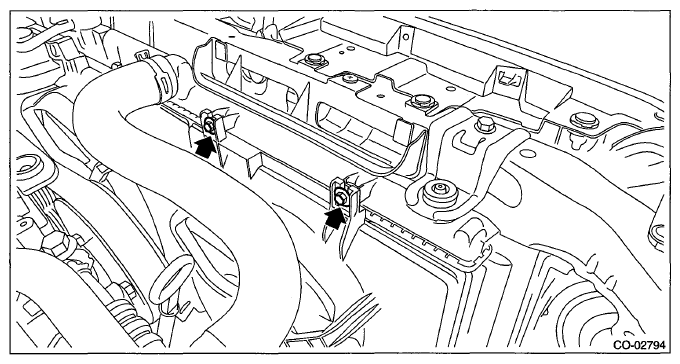

Remove the bolts which hold the radiator sub fan shroud onto the radiator.

Fig 3: Locating Radiator Sub Fan Shroud Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator sub fan and fan motor from vehicle.
