Manifold Absolute Pressure Sensor: Removal

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.

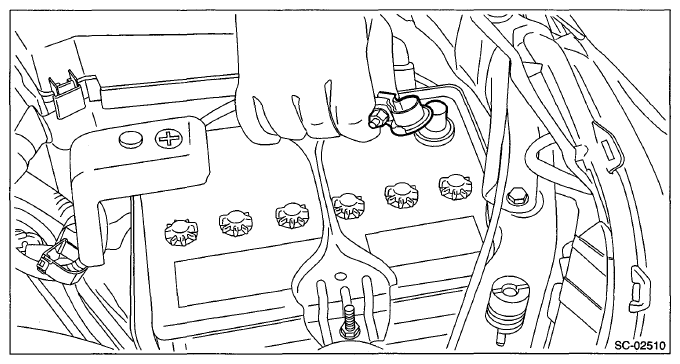

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) from the manifold absolute pressure sensor, and remove the manifold absolute pressure sensor from intake manifold.

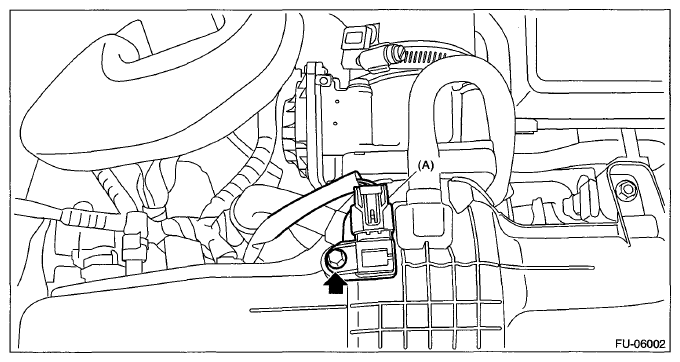

Fig 2: Locating Manifold Absolute Pressure Sensor Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
