Intake Manifold 1

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

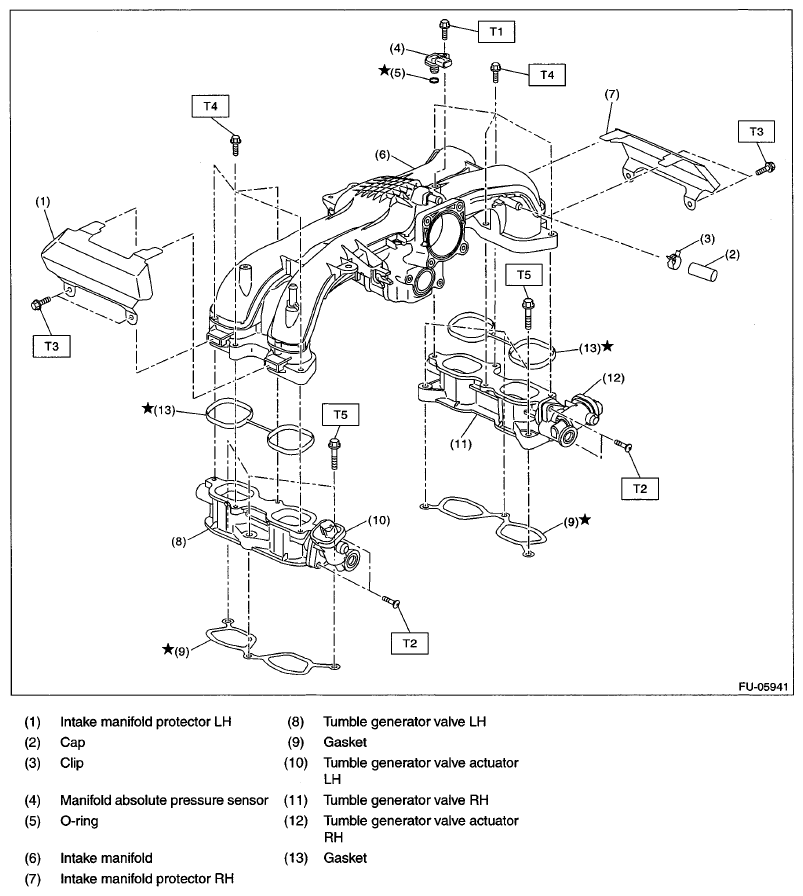

Fig 1: Exploded View Of Intake Manifold 1

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2 (0.2, 1.5)

T2: 6 (0.6, 4.4)

T3: 6.4 (0.7, 4.7)

T4: 8.3 (0.8, 6.1)

T5: 25 (2.5, 18.4)
