Front Side Belt

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the collector cover.
  2. Remove the air intake duct (Rear). < Ref. to REMOVAL , Air Intake Duct. >
  3. Remove the collector cover bracket.

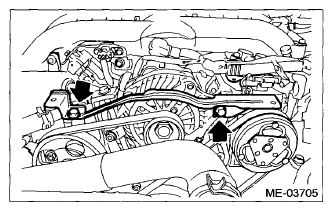

    Fig 1: Locating Collector Cover Bracket Mounting Bolts
    G07670730Courtesy of SUBARU OF AMERICA, INC.
  4. Loosen the bolt (A).
  5. Loosen the slider bolt (B).
  6. Remove the front side belt (C).
    Fig 2: Slider Bolt, Front Side Belt And Mounting Bolt
    G07670731Courtesy of SUBARU OF AMERICA, INC.
