Automatic Belt Tension Adjuster Assembly And Belt Idler

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the belt idler (A) and (B).

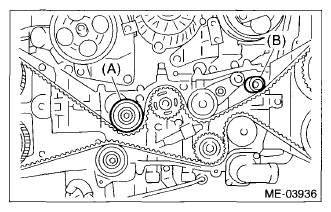

    Fig 1: Belt Idler
    G07670775Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the belt idler No. 2.
    Fig 2: Locating Belt Idler And Mounting Bolt
    G07670776Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the automatic belt tension adjuster assembly.
    Fig 3: Locating Automatic Belt Tension Adjuster Assembly Mounting Bolt
    G07670777Courtesy of SUBARU OF AMERICA, INC.
