Cylinder Head And Valve Assembly

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

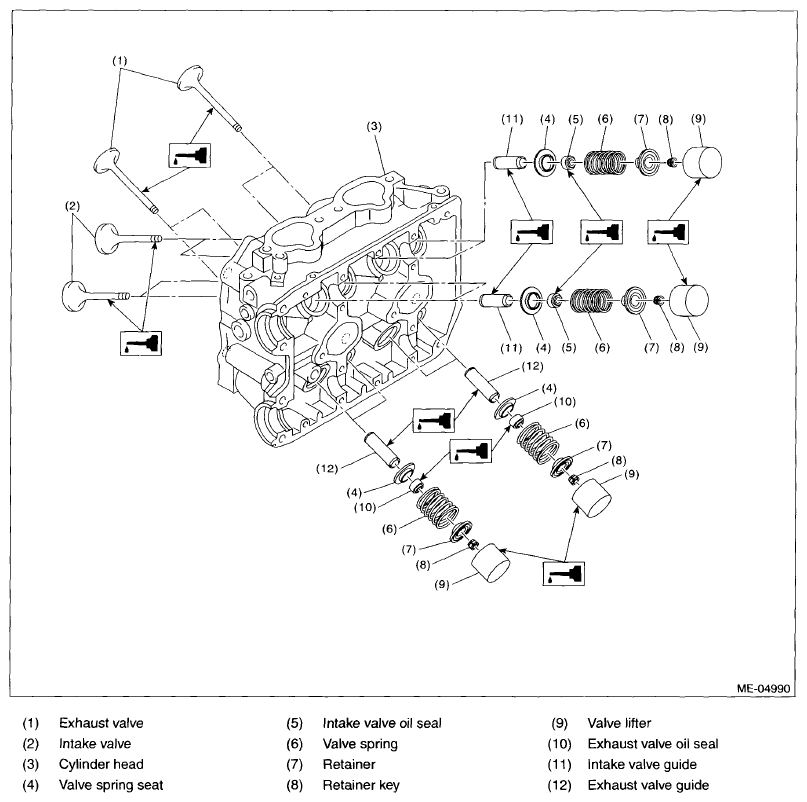

Fig 1: Identifying Cylinder Head, Valve Assembly And Related Components
G07670636Courtesy of SUBARU OF AMERICA, INC.
