Crankshaft And Piston

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

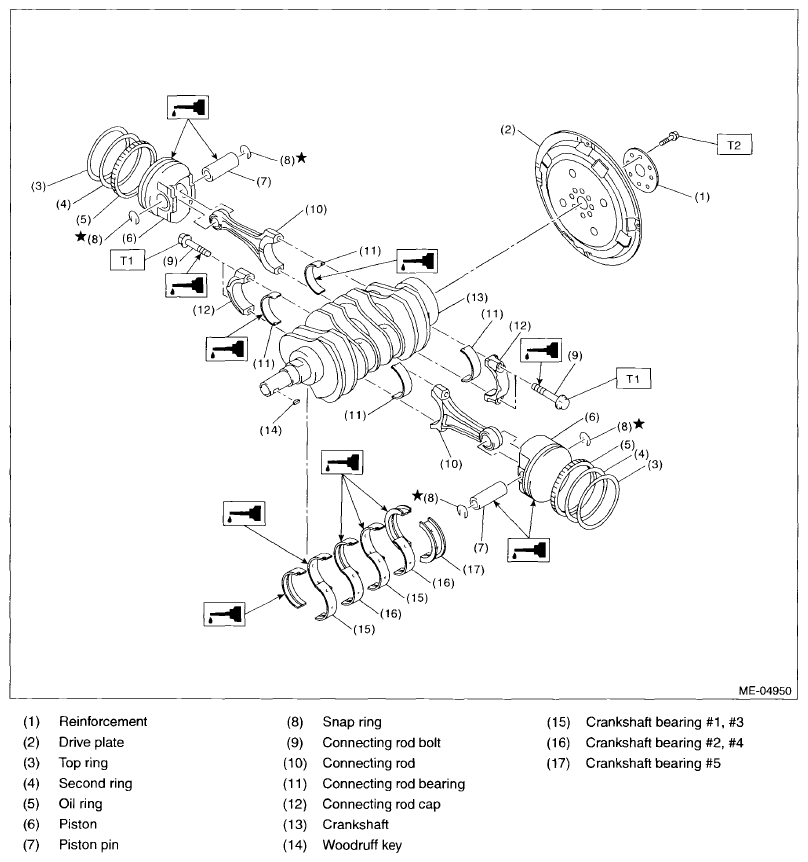

Fig 1: Crankshaft, Piston And Related Replacement Components With Torque Specifications
G07670638Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 52 (5.3, 38.4)

T2:  < Ref. to INSTALLATION , Drive Plate. >
