Cylinder Block: Disassembly

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

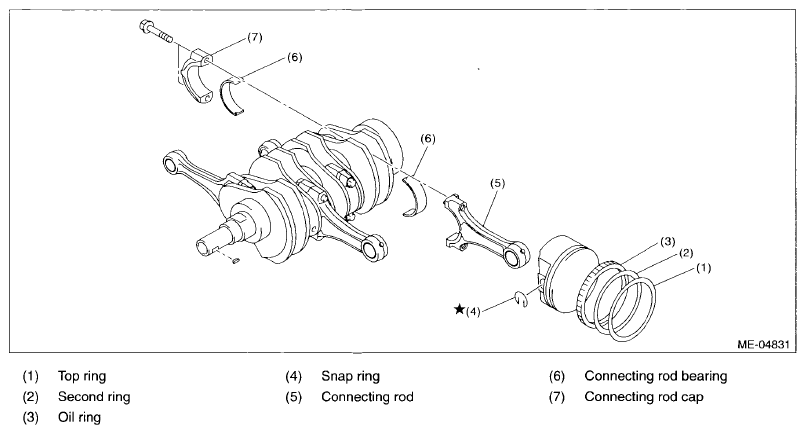

Fig 1: Top Ring, Snap Ring, Connecting Rod Bearing, Connecting Rod Cap And Oil Ring
G07670894Courtesy of SUBARU OF AMERICA, INC.
  1. Remove the connecting rod cap.
  2. Remove the connecting rod bearing.
    NOTE: Keep the removed connecting rods, connecting rod caps and bearings in order so that they are kept in their original combinations/groups, and not mixed together.
  3. Remove the piston rings using piston ring expander.
  4. Remove the oil ring by hand.
    NOTE: Arrange the removed piston rings in proper order, to prevent confusion.
  5. Remove the snap ring.
