Method Without Angle Gauge

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Clean the crankshaft thread using compressed air.
Install the crank pulley.
Apply engine oil to the crank pulley bolt seat and thread.
Tighten the crank pulley bolts.
1. Use the ST to lock the crank pulley, and temporarily tighten the crank pulley bolt.
  ST 499977400 CRANK PULLEY WRENCH

  Tightening torque:

  47 N.m (4.8 kgf-m, 34.7 ft-lb)

  Fig 1: Tightening Crank Pulley Bolt Using Special Tool
  Courtesy of SUBARU OF AMERICA, INC.

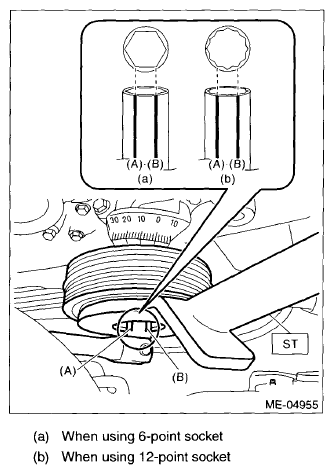

2. Draw reference lines (A) and (B) using a marker to set the socket to the crank pulley bolt as shown in the illustration.
  ST 499977400 CRANK PULLEY WRENCH

  NOTE: Set the socket onto the crank pulley bolt so that reference lines (A) and (B) is visible.

  Fig 2: Positioning Socket Onto Crank Pulley Bolt
  Courtesy of SUBARU OF AMERICA, INC.
3. Draw end line (C) on ST using a marker at the same position as reference line (B) was drawn on the socket in step ( 2).
  ST 499977400 CRANK PULLEY WRENCH

  Fig 3: Drawing End Line On ST Using Marker
  Courtesy of SUBARU OF AMERICA, INC.
4. Use the ST to lock the crank pulley, and tighten the crank pulley bolt to the angle where reference line (A) and end line (C) are aligned.
  ST 499977400 CRANK PULLEY WRENCH

  NOTE: It should be approx. 60° when reference line (A) and end line (C) are aligned.

  Tightening angle:

  60°±5°

  Fig 4: Tightening Crank Pulley Bolt Using Special Tool
  Courtesy of SUBARU OF AMERICA, INC.
Install the V-belts. < Ref. to INSTALLATION , V-belt. >
