Air Cleaner Case: Installation

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install the bolt (A) and nut (B) which secure the air cleaner case (front) to the body.
Tightening torque:

Bolt (A)

6 N.m (0.6 kgf-m, 4.4 ft-lb)

Nut (B)

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

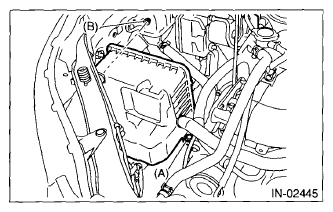

Fig 1: Bolts And Nuts Which Secure Air Cleaner Case (Front) To Body
Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner element.
Install the air cleaner case (rear) and air intake boot.
NOTE: When installing the air cleaner case (rear), align the protrusion of the air cleaner case (rear) to the hole on the air cleaner case (front) to install.

Fig 2: Installing Air Cleaner Element
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

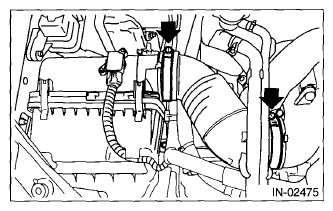

Fig 3: Locating Air Intake Boot Clamp
Courtesy of SUBARU OF AMERICA, INC.
Install the clip (B) to the air cleaner case (front).
Connect the connector (A) to the mass air flow and intake air temperature sensor.

Fig 4: Air Cleaner Case (Front) Clip And Mass Air Flow And Intake Air Temperature Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct (rear). < Ref. to INSTALLATION , Air Intake Duct. >
Connect the ground cable to battery.

Fig 5: Connecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Install the collector cover.
