Rear Lid, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

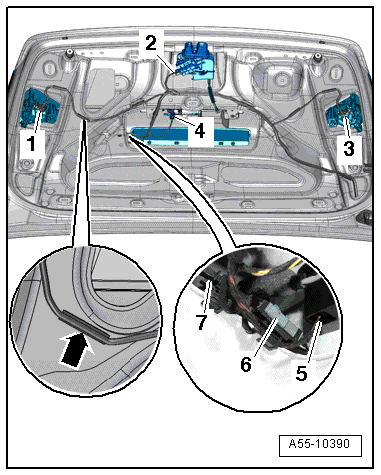

Fig 1: Removing/Installing Rear Lid

GWWA55-10390

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rear lid trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS

-- Disconnect the connectors -1 through 7-.

-- Free up the wiring harness on the rear lid -arrow-.

-- Carefully unclip the cover -1- on the hinge -3- -arrows-.

Fig 2: Unclipping Cover -1- On Hinge -3- -Arrows

GWWA55-10378

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the grommet -2- from the body pass through on the rear lid and guide out the wiring harness.

-- Remove the nut -3-.

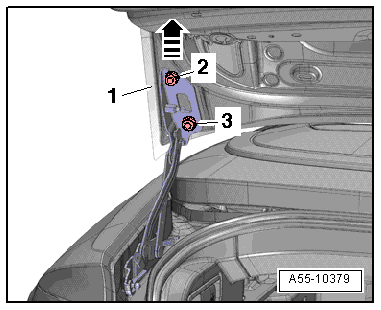

Fig 3: Pulling Rear Lid -1- Off Hinge In -Direction Of Arrow

GWWA55-10379

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

WARNING:

Risk of injury!

A second technician must support and hold the rear lid while it is being removed and installed.

-- Loosen the nut -2- a few turns.

-- Remove the rear lid -1- from the hinge in the direction of the -arrow- with a second technician.
