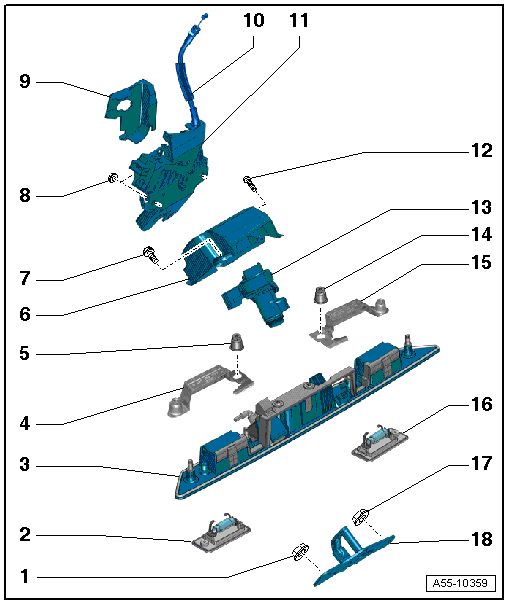

Overview - Latch And Grip Piece
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- 21 Nm
- Left License Plate Lamp
- Handle
- With the Release Button in Rear Lid Handle -E234-, it cannot be replaced separately.
- Removing and installing. Refer to ACTUATOR, REMOVING AND INSTALLING .
- Left Anti-Theft Protection With Nut
- 4 Nm
- Removing and installing. Refer to ACTUATOR, REMOVING AND INSTALLING .
- Cap Nut
- 4 Nm
- Anti-Theft Protection
- For lock cylinder
- Removing and installing. Refer to LOCK CYLINDER, REMOVING AND INSTALLING .
- Bolt
- 1.7 Nm
- Nut
- 21 Nm
- Anti-Theft Protection
- For rear lid lock
- Removing and installing. Refer to LID LATCH CABLE, REMOVING AND INSTALLING .
- Cable
- For rear lid lock
- Removing and installing. Refer to LID LATCH CABLE, REMOVING AND INSTALLING .
- Rear Lid Latch
- With Rear Lid Alarm Switch -F123-
- Removing and installing. Refer to HOOD LATCH, REMOVING AND INSTALLING .
- Bolt
- 1.7 Nm
- Lock Cylinder
- Removing and installing. Refer to LOCK CYLINDER, REMOVING AND INSTALLING .
- Cap nut
- 4 Nm
- Right Anti-Theft Protection with Nut
- 4 Nm
- Removing and installing. Refer to ACTUATOR, REMOVING AND INSTALLING .
- Right License Plate Lamp
- Nut
- 21 Nm
- Catch
- Removing and installing. Refer to CATCH, REMOVING AND INSTALLING .
- Adjusting. Refer to REAR LID, ADJUSTING .
