Convertible Top Compartment Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Convertible Top Compartment Cover Locking Motor -V222-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the convertible top until the displayed position of the top and the convertible top compartment cover is reached.

-- Disengage the service cover -2-.

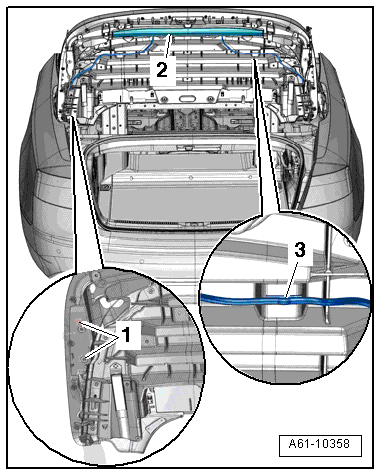

Fig 2: Disengage Service Cover -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the wires from the antennas. Refer to ANTENNA SYSTEMS .

-- Free up the wiring harness -3- from the convertible top compartment cover inner section.

-- Remove the screws -1- and remove the convertible top compartment cover.
