Cover And Cushion, Removing And Installing, Bench Seat: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

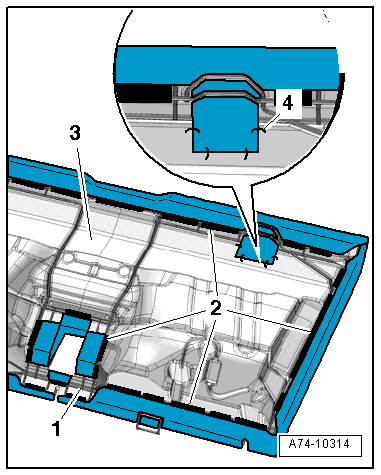

Fig 1: Identifiyng Cover And Cushion, Seat Bench

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Vehicles with center storage compartment (Super Sport seat only): remove the center storage compartment. Refer to CENTER STORAGE COMPARTMENT, REMOVING AND INSTALLING .

-- Cut through upholstery clips -4- with pliers.

-- Disengage the molding -2- all around the seat frame -1-.

-- Remove the cover and cushion -3- from the seat frame.
