Windshield Washer Fluid Reservoir, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and remove the key.

-- Remove the washer fluid reservoir filler neck. Refer to WASHER FLUID RESERVOIR FILLER TUBE, REMOVING AND INSTALLING .

-- Remove the left front wheel.

-- Remove the left front wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Place a drip tray under the windshield washer fluid reservoir.

Fig 1: Place A Drip Tray Under Windshield Washer Fluid Reservoir

Courtesy of AUDI OF AMERICA, LLC

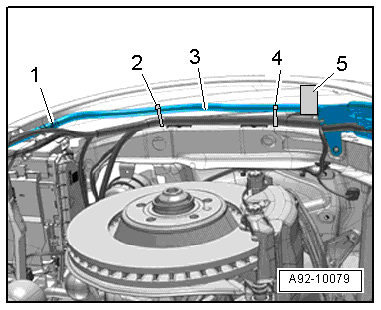

-- Remove the hose coupling -1- from the headlamp washer system fluid line -3- by pulling the release button.

-- Cut through the cable ties -2- and -4-.

-- Remove the plastic wedge -5-.

-- Disconnect the connectors -7- and -8-.

Fig 2: Disconnecting Electrical Connectors

Courtesy of AUDI OF AMERICA, LLC

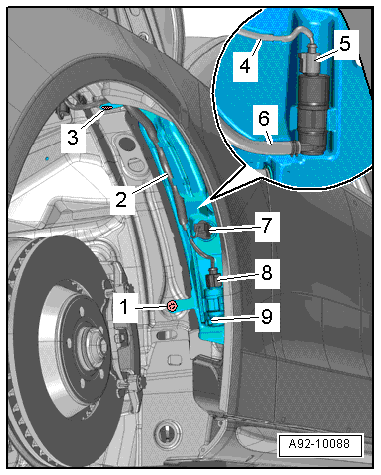

-- Release the securing clip and remove the washer fluid line -9- from the windshield washer system washer fluid pump.

-- Loosen the wiring harness -2- from the mounts on the washer fluid reservoir.

-- Remove the bolts -1- and -3-.

-- Pull the washer fluid reservoir forward slightly and out.

-- Disconnect the connector -5-.

-- Loosen the headlamp washer system fluid hose -6- and wiring harness -4- from the mounts on the washer fluid reservoir.

-- Remove the washer fluid reservoir.
