Overview - Variable Convertible Top Compartment Enclosure

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

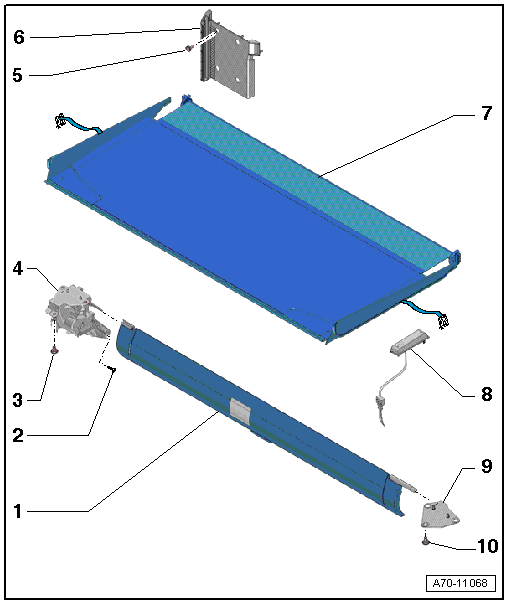

Fig 1: Exploded View Of Variable Convertible Top Compartment Enclosure Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Trim
- For the variable convertible top compartment enclosure
- Removing and Installing. Refer to VARIABLE CONVERTIBLE TOP COMPARTMENT ENCLOSURE TRIM, REMOVING AND INSTALLING .
Bolt
- 8 Nm
Bolt
- 8 Nm
- Quantity: 3
Left Mounting Bracket
- With Left Convertible Top Compartment Enclosure Motor -V433-
- Removing and Installing. Refer to LEFT MOUNTING BRACKET FOR VARIABLE CONVERTIBLE TOP COMPARTMENT ENCLOSURE, REMOVING AND INSTALLING .
Bolt
- 8 Nm
- Quantity: 4
Guide Rail
- For the variable convertible top compartment enclosure
- Removing and Installing. Refer to GUIDE RAIL FOR VARIABLE CONVERTIBLE TOP COMPARTMENT ENCLOSURE, REMOVING AND INSTALLING .
Variable Convertible Top Compartment Enclosure
- Removing and Installing. Refer to VARIABLE CONVERTIBLE TOP COMPARTMENT ENCLOSURE, REMOVING AND INSTALLING .
Switches
- For the convertible top compartment enclosure
- Left Convertible Top Compartment Enclosure Switch -F402-
- Right Convertible Top Compartment Enclosure Switch -F403-
- Removing and Installing. Refer to LEFT/RIGHT CONVERTIBLE TOP COMPARTMENT ENCLOSURE SWITCH -F402- / .
Right Mounting Bracket
- Removing and Installing. Refer to RIGHT MOUNTING BRACKET FOR VARIABLE CONVERTIBLE TOP COMPARTMENT ENCLOSURE, REMOVING AND INSTALLING .
Bolt
- 8 Nm
- Quantity: 3
