Connector End View C4401 - Hands Free Actuation Module

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

HANDS FREE ACTUATION MODULE

COLOR

HARNESS

15K868

BASE PART #

PART# N/A

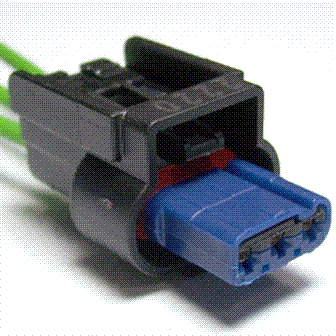

SERVICE PIGTAIL

SEE BELOW

Courtesy of FORD MOTOR COMPANY

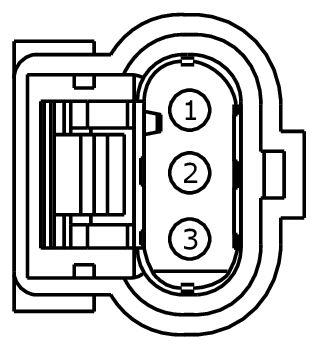

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPK52 (VT-WH)	20	CTRL MOD. - LIFTGATE/TAILGATE HANDS-FREE # OUTPUT
2	SBP10 (YE-RD)	20	FUSE - OR CIRCUIT BREAKER
3	GD347 (BK-VT)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT
3	GD347 (BK-VT)	20	GROUND - PILLAR C OR QUARTER PANEL LEFT

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1530

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ARB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Coil - Ignition

Lamp - Front Turn

Lamp - Park/Turn

Module - Handsfree Liftgate Entry

Monitor - Crankcase Ventilation

Motor - Intercooler Pump

Pump - Auxiliary Heater

Pump - Coolant Module

Pump - Transfer Case Coolant

Sensor - Cam Shaft Position

Sensor - Crank Shaft Position

Sensor - Crankcase Pressure

Sensor - Fuel Low Pressure

Sensor - Particulate Delta Pressure

Sensor - Particulate Filter Delta Pressure

Solenoid - Wastegate Vacuum

Switch - Deck Lid / Hatch Release

Pigtail Kit Part Number

WPT-1202

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ARA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Actuator - Turbocharger Waste Gate

Coil - Ignition

Sensor - Cam Shaft Position

Sensor - Crank Shaft Position
