Connector End View C4339A - Liftgate Latch/Unlatch Assembly
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
LIFTGATE LATCH/UNLATCH ASSEMBLY
COLOR
HARNESS
13412
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPR66 (GY-YE) | 20 | LATCH - LIFTGATE # RATCHET SWITCH | |
| 2 | CPR60 (WH-VT) | 20 | CTRL MOD. - POWER LIFTGATE # UNLATCH (-) | |
| 3 | CPRC7 (YE-VT) | 20 | CTRL MOD. - LATCH LIFTGATE RATCHET SECONDARY | |
| 4 | CPRC6 (GN-OG) | 20 | CTRL MOD. - LATCH LIFTGATE RATCHET PRIMARY | |
| 5 | GD348 (BK-YE) | 22 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | |
| 6 | * | * | Not Used |

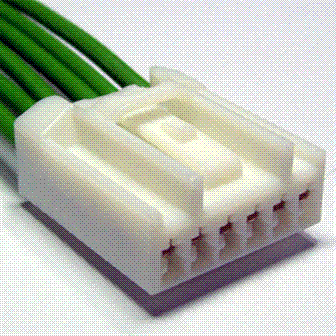

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1119 |
Service Part Number: AU2Z-14S411-AVA Gauge: 16 Pin material: Silver Cavities: 6 Vehicle Uses Switch - Deck Lid / Lift Gate Ajar |
