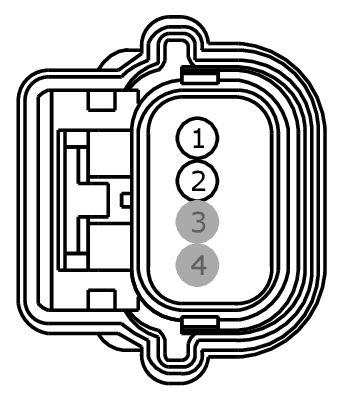

Connector End View C4332 - Keyless Vehicle Rear Antenna
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
KEYLESS VEHICLE REAR ANTENNA
COLOR
HARNESS
13A409
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VPK06 (GY-VT) | 20 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) + | |
| 2 | RPK06 (BU-WH) | 20 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) - | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1307 |
Service Part Number: CU2Z-14S411-AGA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Antenna - Keyless Entry Sensor - Brake Pedal Position Sensor - Clutch Master Cylinder |
