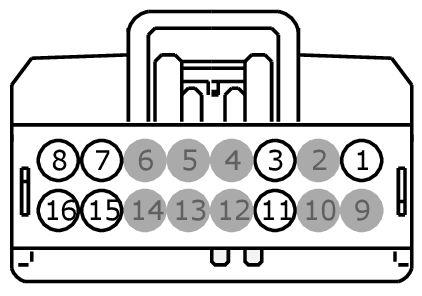

Connector End View C3386 - Passenger Multi-Contour Seat Module [SCMH]
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
PASSENGER MULTI-CONTOUR SEAT MODULE [SCMH]
COLOR
HARNESS
14D233
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBX06 (GY-RD) | 18 | POWER - SEAT # HEATED SEAT MODULE | |
| 1 | CBB92 (GN-WH) | 20 | FUSE - OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | CPT05 (YE) | 20 | #N/A | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | VDB07 (VT-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 8 | VDB06 (GY-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | CPS95 (GN-VT) | 20 | SWITCH - SEAT MULTICONTOUR # MORE (LMR) | |
| 11 | CPSJ4 (BU) | 20 | CTRL MOD. - MULTICONTOUR SEAT FRONT LEFT # SWITCH RESISTIVE LADDER + | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | CPS96 (WH-OG) | 20 | SWITCH - SEAT MULTICONTOUR # LESS (LLS) | |
| 15 | RPSJ4 (WH-OG) | 20 | CTRL MOD. - MULTICONTOUR SEAT FRONT LEFT # SWITCH RESISTIVE LADDER - | |
| 16 | GD904 (BK-BU) | 18 | GROUND - DRIVER SEAT # SEAT SWITCH | |
| 16 | GD383 (BK-WH) | 20 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1585 |
Service Part Number: KU2Z-14S411-FB Gauge: 20 Pin material: Silver Cavities: 16 Vehicle Uses Module - Audio Control Module - Seat Multi Contour |
| Pigtail Kit Part Number WPT-1579 |
Service Part Number: KU2Z-14S411-FA Gauge: 20 Pin material: Silver Cavities: 16 Vehicle Uses Module - Audio Control Module - Seat Multi Contour |
