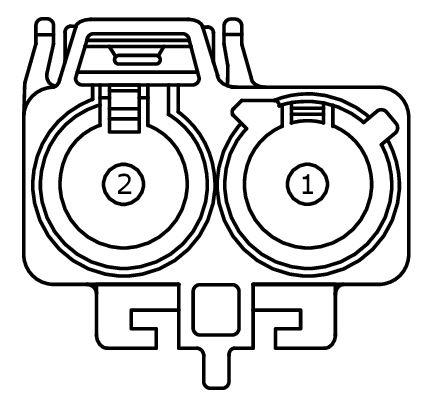

Connector End View C2821B - Park Assist Camera Module
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
PARK ASSIST CAMERA MODULE
COLOR
HARNESS
14A005
BASE PART #
PART# N/A
SERVICE PIGTAIL
NOT AVAILABLE
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
COAX1 (BK) |
24 |
COAX |
| 2 |
COAX1 (BK) |
24 |
COAX |
