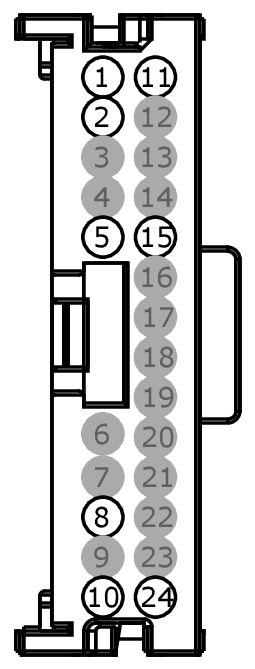

Connector End View C2821A - Park Assist Camera Module
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
PARK ASSIST CAMERA MODULE
COLOR
HARNESS
14A005
BASE PART #
PART# N/A
SERVICE PIGTAIL
NOT AVAILABLE
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VMP43 (GN-BU) | 22 | CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT + | |
| 2 | DMP43 (BK) | 20 | CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT D | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | VDB25 (GN-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | CMP40 (VT) | 22 | SWITCH - FRONT 360 CAMERA ENABLE | |
| 9 | * | * | Not Used | |
| 10 | CBB15 (BN-BU) | 22 | FUSE - OR CIRCUIT BREAKER | |
| 11 | VMP44 (VT-GY) | 22 | CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT - | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | VDB26 (GY-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | GD233 (BK) | 20 | GROUND - COWL SIDE/PILLAR A LEFT |
