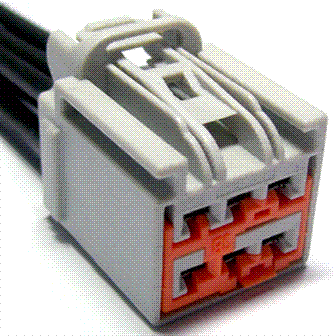

Connector End View C2089 - Adjustable Pedal Switch
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
ADJUSTABLE PEDAL SWITCH
COLOR
HARNESS
14401
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPP09 (VT-OG) | 22 | SWITCH - ADJUST. PEDALS # FORWARD | |
| 2 | SBP31 (WH-RD) | 18 | FUSE - OR CIRCUIT BREAKER | |
| 2 | GD214 (BK-BU) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE | |
| 3 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 4 | GD214 (BK-BU) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE | |
| 4 | GD214 (BK-BU) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE | |
| 5 | CPP10 (BN-BU) | 22 | SWITCH - ADJUST. PEDALS # REARWARD | |
| 6 | GD214 (BK-BU) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1019 |
Service Part Number: 3U2Z-14S411-XVB Gauge: 12 Pin material: Tin Cavities: 6 Vehicle Uses Junction Box - Relay Switch - Adjustable Pedal Switch - Moon Roof/Sun Roof Switch - Power Window - Driver Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - Quarter Glass Switch - Power Window - RH - Rear Switch - Seat Passenger Side (2nd Row) Switch - Third Row Power Folding Seat |
