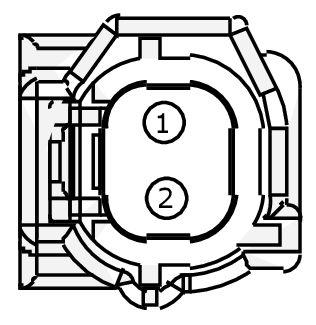

Connector End View C1890 - Remote Keyless Entry (RKE) Exterior Sounder
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
REMOTE KEYLESS ENTRY (RKE) EXTERIOR SOUNDER
COLOR
HARNESS
14290
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPK57 (BN-BU) | 20 | CTRL MOD. - KEYLESS VEHICLE # SOUNDER | |
| 2 | GD131 (BK-GY) | 20 | GROUND - HEADLAMP PANEL/GOR RIGHT |

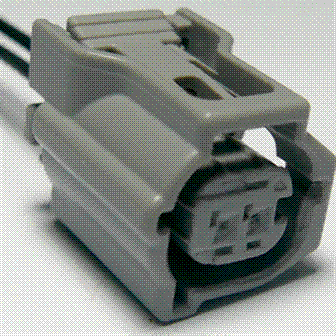

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1514 |
Service Part Number: JU2Z-14S411-GA Gauge: 20 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Module - Warning Chime/ Beltminder SPEAKER - Piezo Sounder |
