Third Row Center Seatbelt Retractor - Short Wheelbase: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

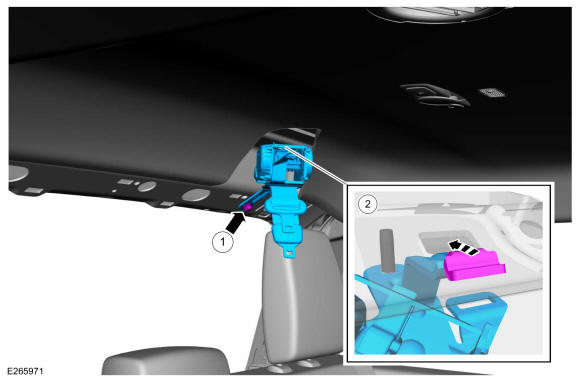

Disconnect the third row center seatbelt from the third row center seatbelt buckle assembly.
1. Press the release button. Use the General Equipment: Flat-Bladed Screwdriver
2. Release the third row center seatbelt retractor.
Courtesy of FORD MOTOR COMPANY

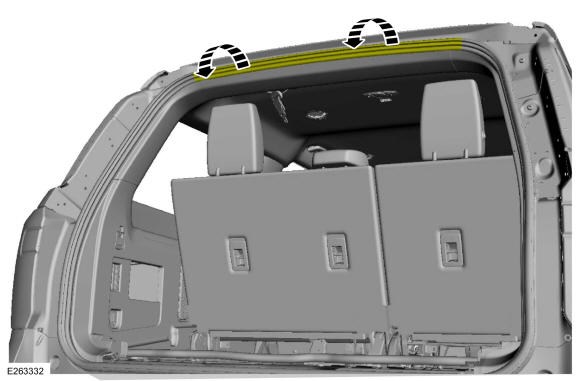

Position the liftgate opening weatherstrip aside.

Courtesy of FORD MOTOR COMPANY

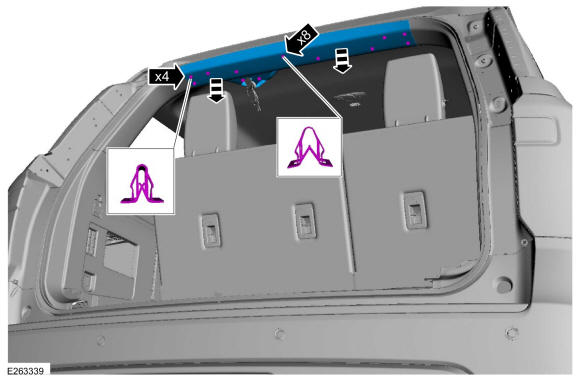

Release the clips and remove the liftgate opening upper trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the third row center seatbelt retractor.
1. Remove the bolt.
2. Release the locking tab.
  Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
