Second Row Outer Seatbelt Upper Retractor - Vehicles With: Inflatable Seatbelts: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

Remove the loadspace trim panel. Refer to: Loadspace Trim Panel .

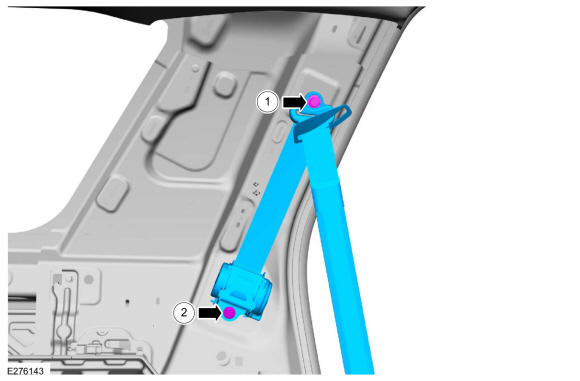

Remove the second row outer seatbelt upper retractor.
1. Remove the D-ring bolt.
  Torque: 30 lb.ft (40 Nm)
2. Remove the retractor bolt.
  Torque: 30 lb.ft (40 Nm)
