Second Row Center Seatbelt Buckle: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the second row center seat. Refer to: Second Row Center Seat .

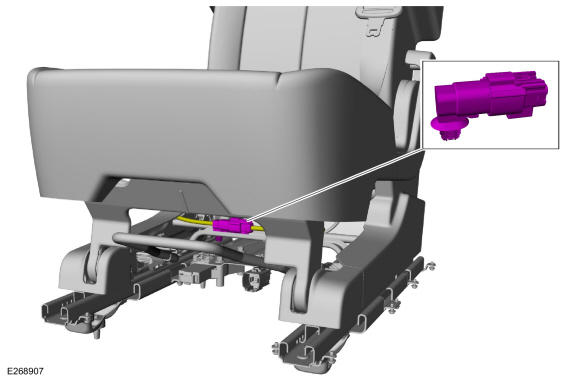

  2. If equipped. Detach and disconnect the second row center seatbelt buckle electrical connector.
    GFD275649Courtesy of FORD MOTOR COMPANY

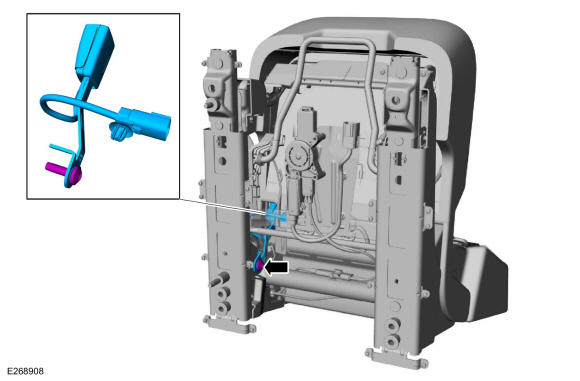

  3. Remove bolt and the second row center seat seatbelt buckle.

    Torque: 30 lb.ft (40 Nm)

GFD275650Courtesy of FORD MOTOR COMPANY
