Seatbelt Tongue Rotated On Belt

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

Adjustment

NOTE: Typical seatbelt tongue shown, others similar.

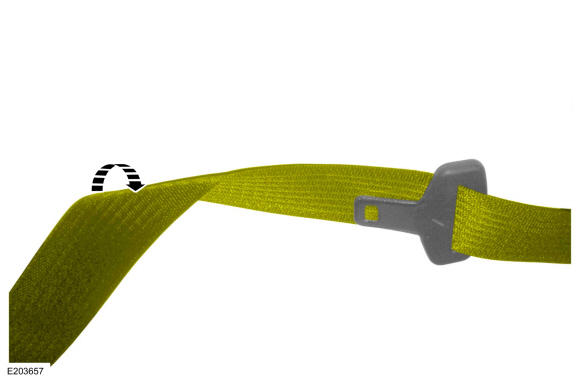

  1. Fold the seatbelt as indicated.
    GFD275639Courtesy of FORD MOTOR COMPANY

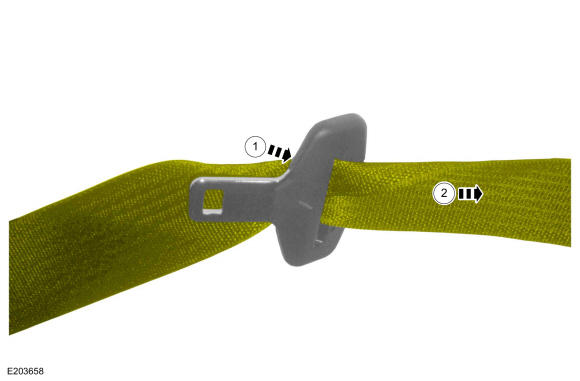

    1. Feed the folded portion of the seatbelt into the seatbelt tongue.
    2. Pull the seatbelt through the seatbelt tongue to remove the twist in the seatbelt.
GFD275640Courtesy of FORD MOTOR COMPANY
