Rear Bumper Cover: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .

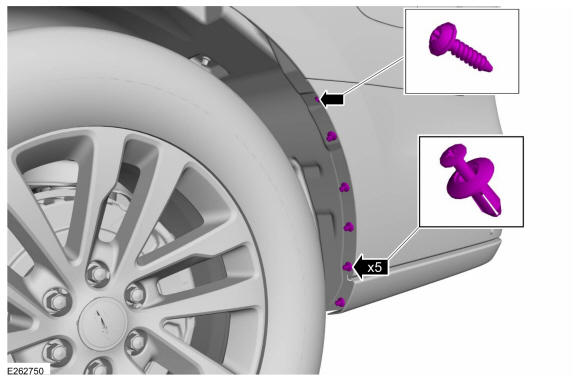

On both sides. Remove the rivet blinds and the screw.

Courtesy of FORD MOTOR COMPANY

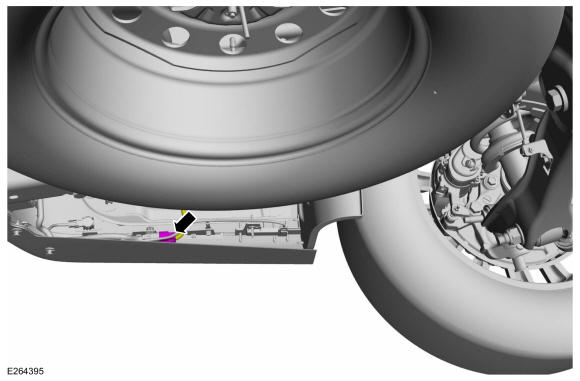

Disconnect the rear bumper cover electrical connector.

Courtesy of FORD MOTOR COMPANY

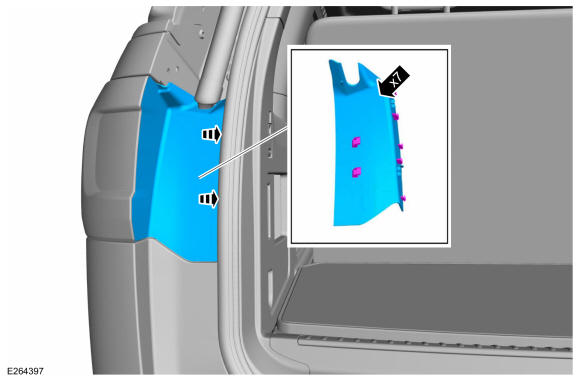

On both sides. Release the clips and remove the rear lamp cover assembly.

Courtesy of FORD MOTOR COMPANY

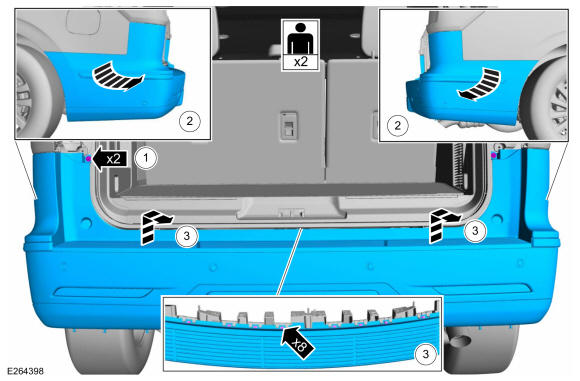

With the help of an assistant. Remove the rear bumper cover.
1. Remove the screws.
  Torque: 35 lb.in (4 Nm)
2. Release the sides of the rear bumper cover from the reinforcement assembly cover mountings.
3. Release the tabs, lift the rear bumper cover up and remove the rear bumper cover.
Courtesy of FORD MOTOR COMPANY

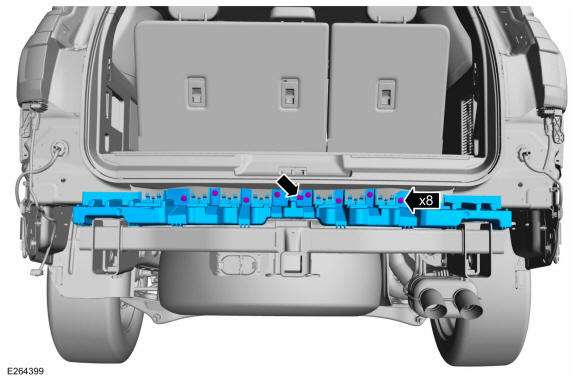

Remove the screws, detach the retainer and remove the rear bumper isolator.
Torque: 35 lb.in (4 Nm)

Courtesy of FORD MOTOR COMPANY

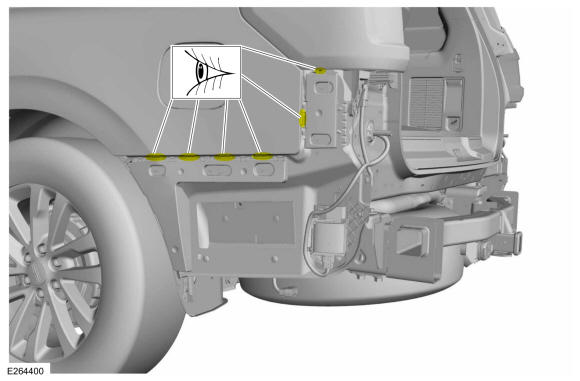

On both sides. Inspect the rear bumper reinforcement assembly cover mountings.

Courtesy of FORD MOTOR COMPANY

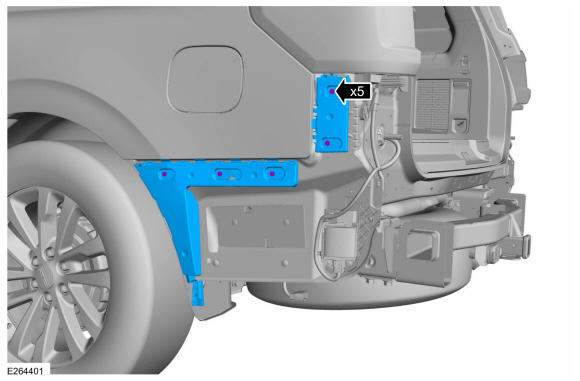

If required, on both sides. Remove the screws and the rear bumper reinforcement assembly cover mountings.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY
