Windshield Washer Reservoir: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

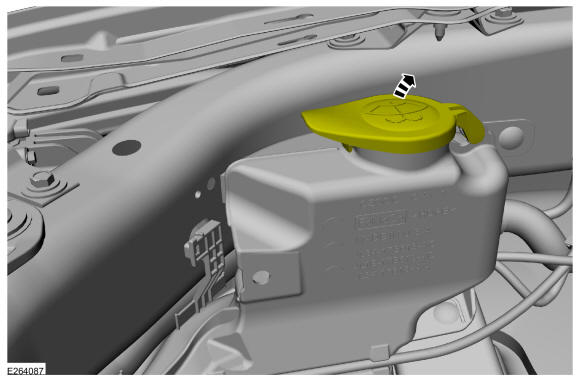

Open the windshield washer reservoir lid.

Courtesy of FORD MOTOR COMPANY

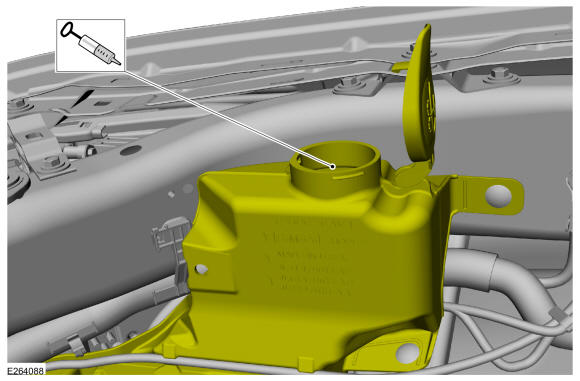

Siphon the windshield washer fluid. Use the General Equipment: Fluid Suction Gun

Courtesy of FORD MOTOR COMPANY
Remove the battery tray. Refer to: Battery Tray .

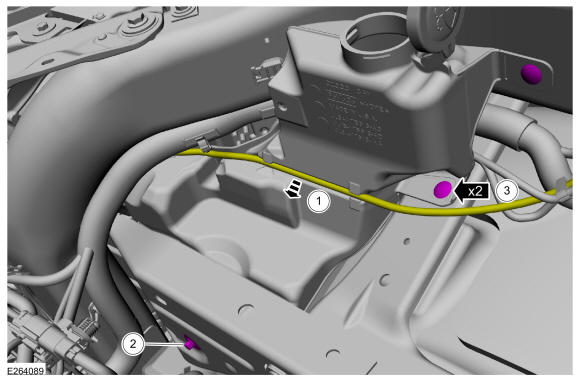

1. Detach the hose from the windshield washer reservoir.
2. Remove the bolt.
  Torque: 133 lb.in (15 Nm)
3. Detach the pin-type retainers.
Courtesy of FORD MOTOR COMPANY
Remove the RH fender splash shield. Refer to:FENDER SPLASH SHIELD .

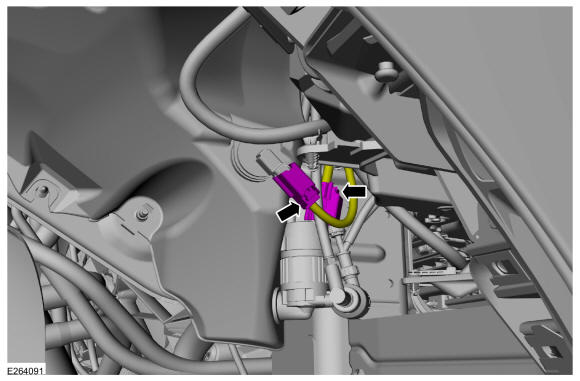

Disconnect the washer pump and fluid level sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY

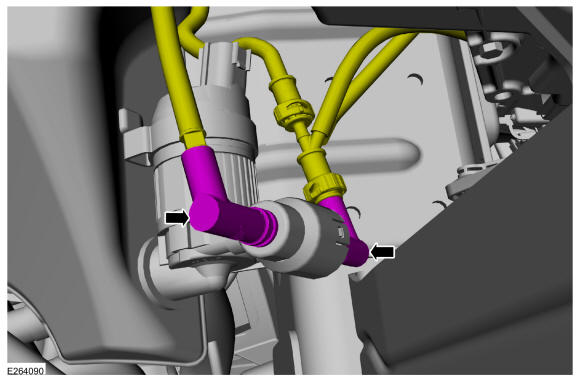

Detach the washer pump hoses.

Courtesy of FORD MOTOR COMPANY

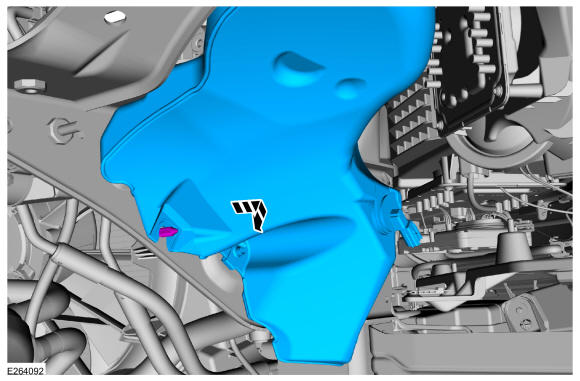

Remove the windshield washer reservoir.

Courtesy of FORD MOTOR COMPANY
