Rain Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

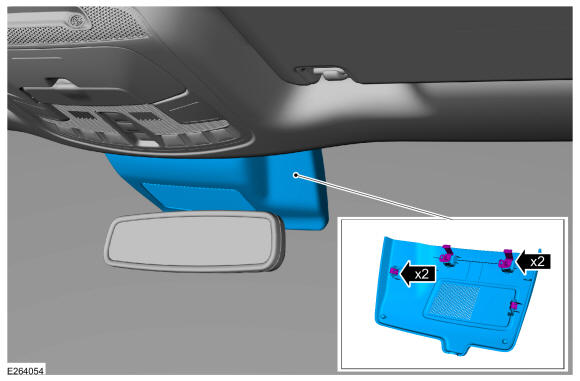

  1. Detach the clips and remove the trim cover.
    GFD275488Courtesy of FORD MOTOR COMPANY

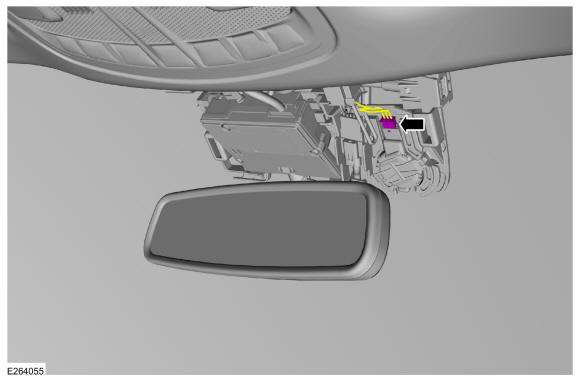

  2. Disconnect the rain sensor electrical connector.
    GFD275489Courtesy of FORD MOTOR COMPANY

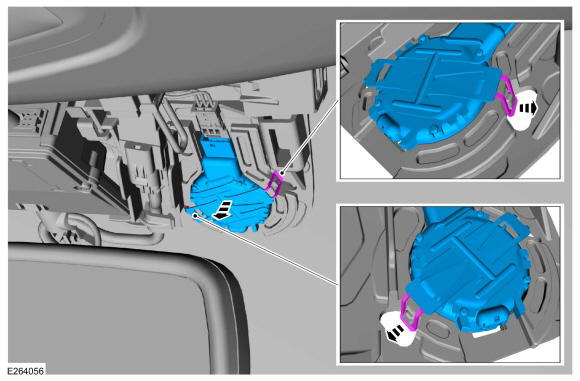

  3. Pull outward on the clips and remove the rain sensor.
GFD275490Courtesy of FORD MOTOR COMPANY
