Liftgate Release Switch: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the reversing lamp assembly. Refer to: Reversing Lamp .
  2. Disconnect the coaxial cable connector.
    GFD274443Courtesy of FORD MOTOR COMPANY
  3. Remove the screws and the bracket.
    GFD275466Courtesy of FORD MOTOR COMPANY
  4. Remove the rear housing.

    1. Disconnect the electrical connector and position the wiring harness aside.
    2. Remove the screws and the rear housing from the reversing lamp assembly.

    GFD275467Courtesy of FORD MOTOR COMPANY

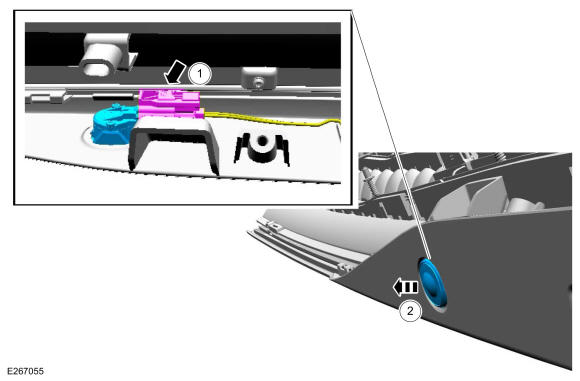

  5. Remove the liftgate release switch.

    1. Disconnect the liftgate release switch electrical connector.
    2. Remove the liftgate release switch.

GFD275468Courtesy of FORD MOTOR COMPANY
