Interior Rear Door Handle: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.
  1. Remove the rear door trim panel. Refer to: Rear Door Trim Panel .

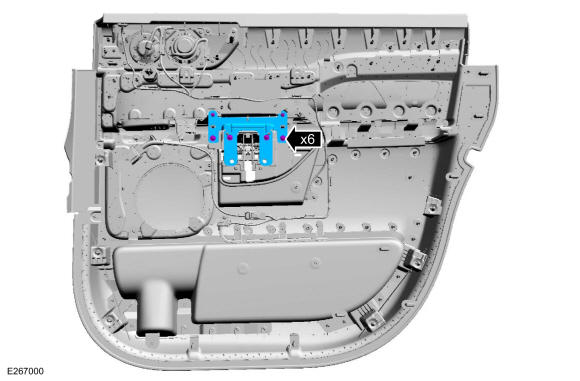

  2. Remove the bolts and the interior rear door handle bracket.
    GFD275461Courtesy of FORD MOTOR COMPANY

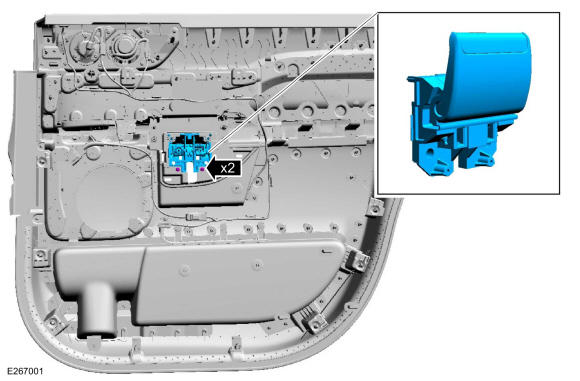

  3. Remove the bolts and the interior rear door handle.
GFD275462Courtesy of FORD MOTOR COMPANY
