Hood Latch Release Cable: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hood latch release handle. Refer to: Hood Latch Release Handle .
    1. Remove the pin-type retainers and position the air cleaner panel aside
    2. Release the clips and position the RH and LH cowl filler panels aside.
    GFD275445Courtesy of FORD MOTOR COMPANY
  3. Remove the pin-type retainers and the radiator sight shield.
    GFD275446Courtesy of FORD MOTOR COMPANY
  4. Remove the air cleaner. Refer to: Air Cleaner .

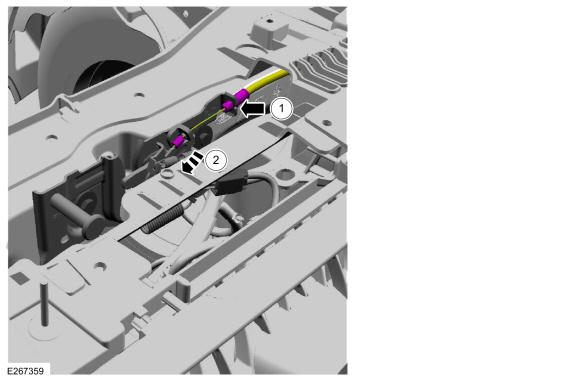

  5. Detach the hood latch release cable from the hood latch.

    1. Release the hood latch release cable from the mounting bracket.
    2. Detach the hood latch release cable eyelet from the hood latch.

    GFD275449Courtesy of FORD MOTOR COMPANY

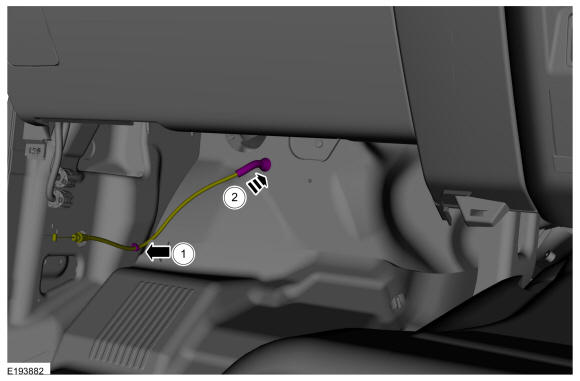

  6. Route the hood latch release cable through the cowl.

    1. Release the cable routing clip.
    2. Route the hood latch release cable through the cowl.

    GFD275450Courtesy of FORD MOTOR COMPANY

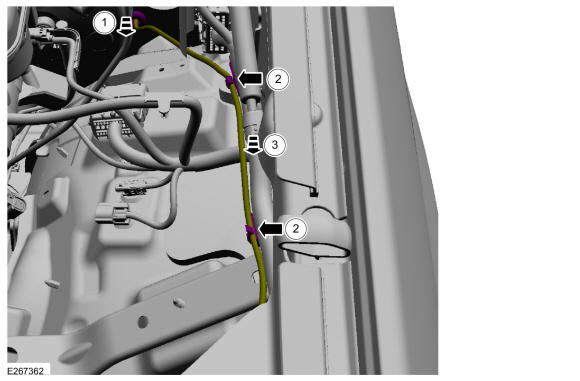

  7. Route the hood latch release cable through the engine compartment.

    1. Route the hood latch release cable through the cowl.
    2. Release the cable routing clips.
    3. Route the hood latch release cable through the engine compartment.

    GFD275451Courtesy of FORD MOTOR COMPANY

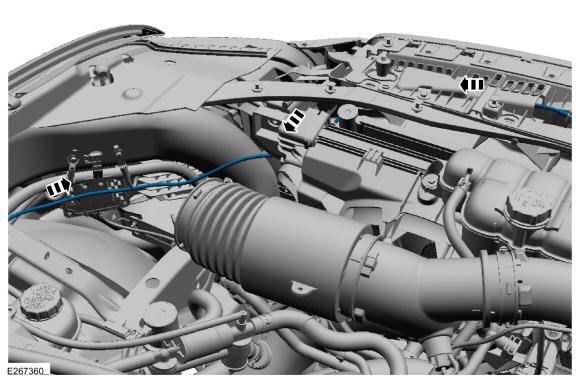

  8. Remove the hood latch release cable.
GFD275452Courtesy of FORD MOTOR COMPANY
