Handles, Locks, Latches and Entry Systems - Component Location
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

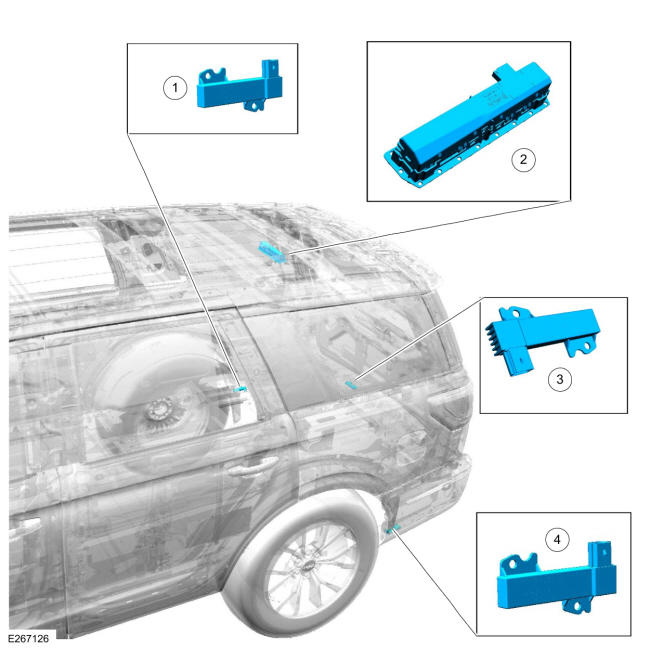

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
RHR keyless entry antenna |
| 2 |
RTM |
| 3 |
Rear keyless entry/PATS antenna |
| 4 |
LHR Keyless entry antenna |
| -- |
RGTM (located in LHR quarter panel) (not shown) |

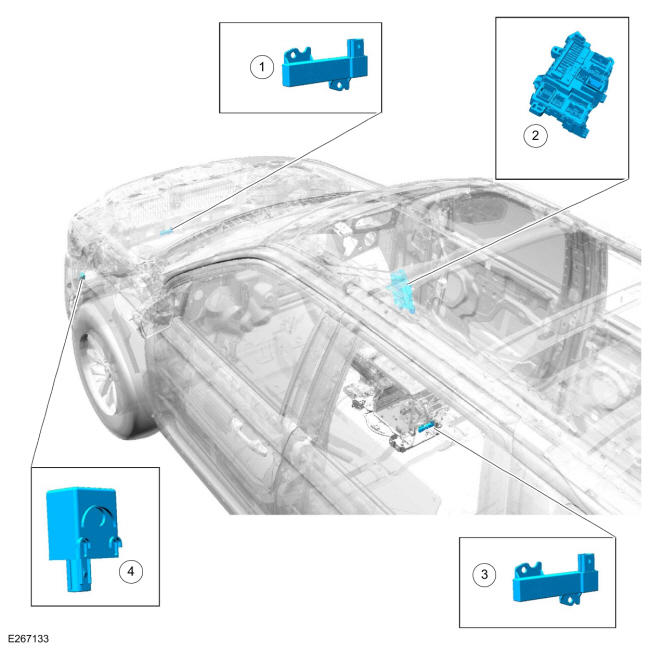

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Approach detection antenna |
| 2 |
BCM |
| 3 |
Center keyless entry/PATS antenna |
| 4 |
RKE exterior sounder |
