Instrument Panel: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. Remove both front seats. Refer to: Front Seat .
  2. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
  3. Remove the front floor console. Refer to: Floor Console .

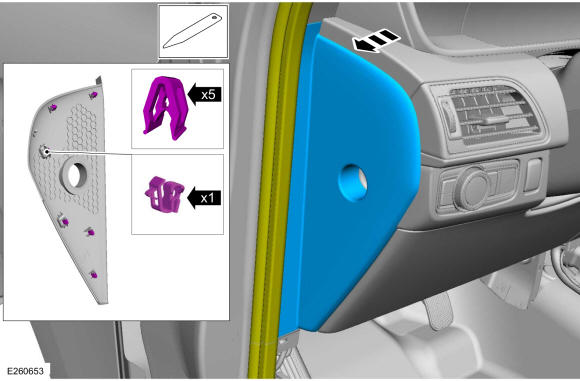

  4. Release the clips and remove the LH instrument panel finish panel. Use the General Equipment: Interior Trim Remover
    GFD275361Courtesy of FORD MOTOR COMPANY

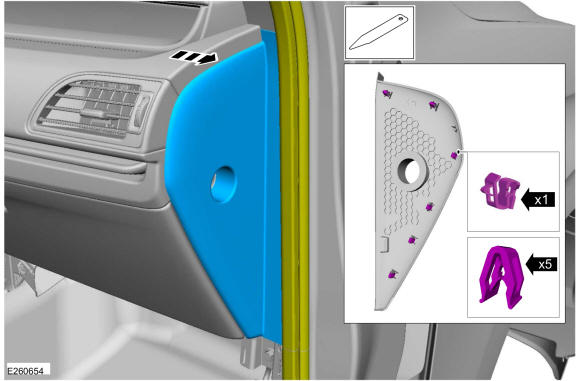

  5. Release the clips and remove the RH instrument panel finish panel. Use the General Equipment: Interior Trim Remover
    GFD275362Courtesy of FORD MOTOR COMPANY

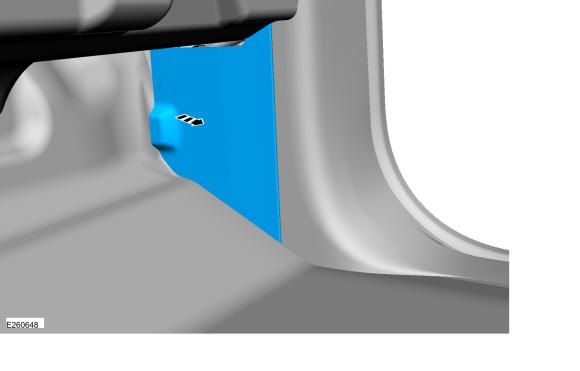

  6. Remove the lower RH access door.
    GFD275363Courtesy of FORD MOTOR COMPANY

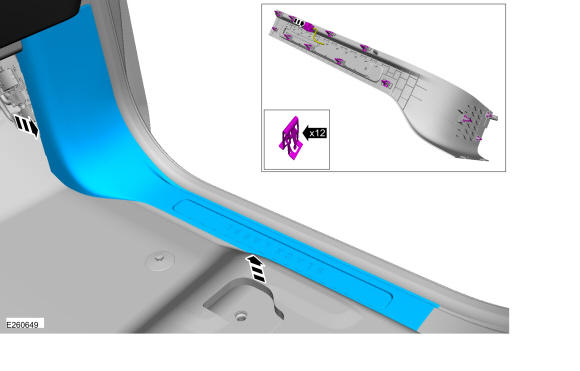

  7. Release the clips and remove the RH scuff plate.
    GFD275364Courtesy of FORD MOTOR COMPANY

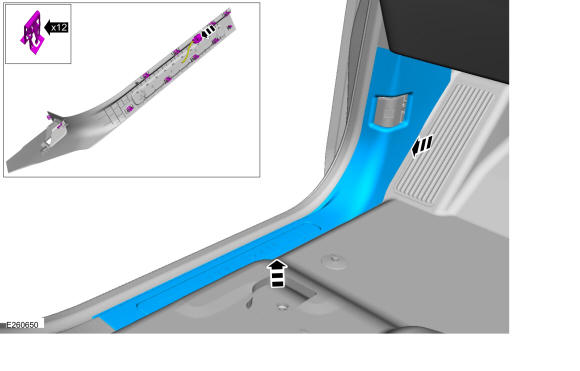

  8. Release the clips and remove the LH scuff plate.
    GFD275365Courtesy of FORD MOTOR COMPANY

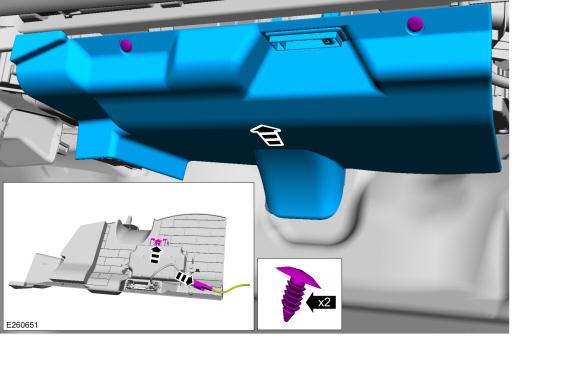

  9. Remove the push pins and remove the RH insulation panel.

    • Disconnect the electrical connector.

    GFD275366Courtesy of FORD MOTOR COMPANY

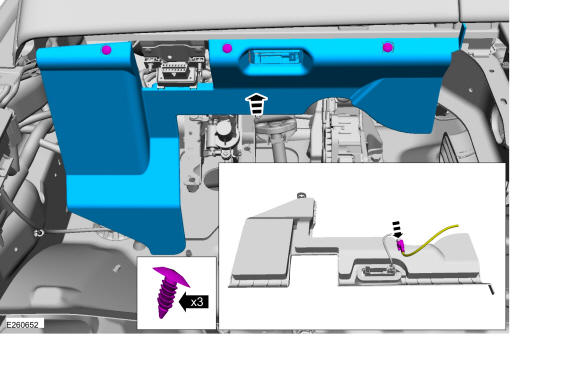

  10. Remove the push pins and remove the LH insulation panel.

    • Disconnect the electrical connector.

    GFD274633Courtesy of FORD MOTOR COMPANY

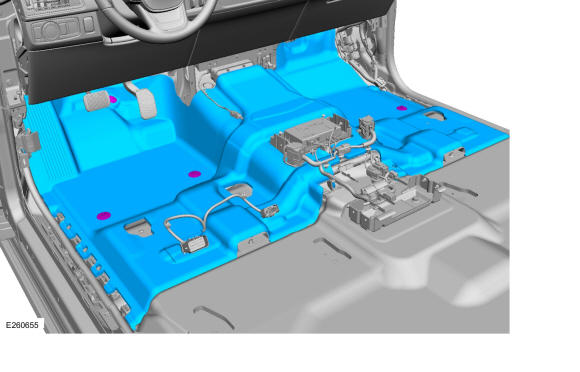

  11. Release the front floor covering retainers and remove the front floor covering.
    GFD275367Courtesy of FORD MOTOR COMPANY

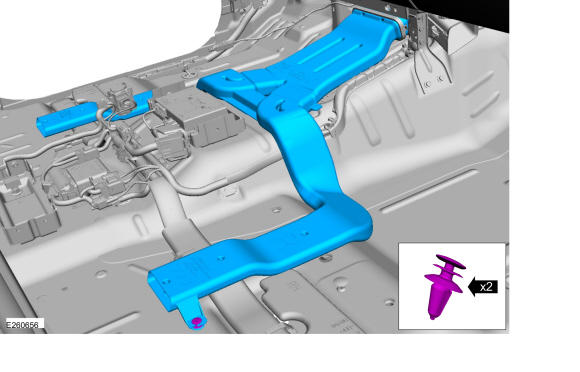

  12. Remove the rear HVAC duct retainers and remove the duct.
    GFD275368Courtesy of FORD MOTOR COMPANY

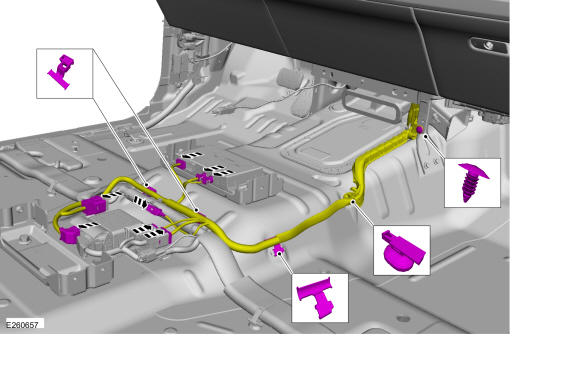

  13. Disconnect the electrical connectors, detach the harness retainers and position the harness aside.
    GFD275369Courtesy of FORD MOTOR COMPANY

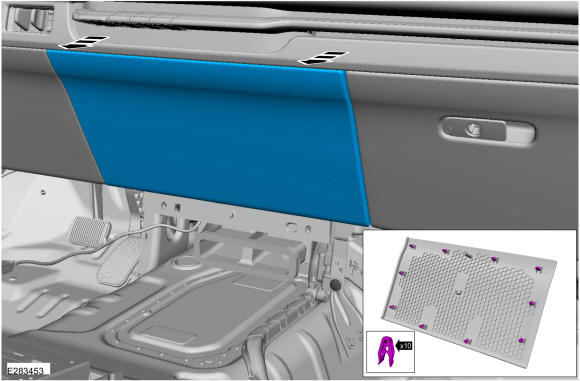

  14. Release the clips and remove the trim panel.
    GFD275358Courtesy of FORD MOTOR COMPANY

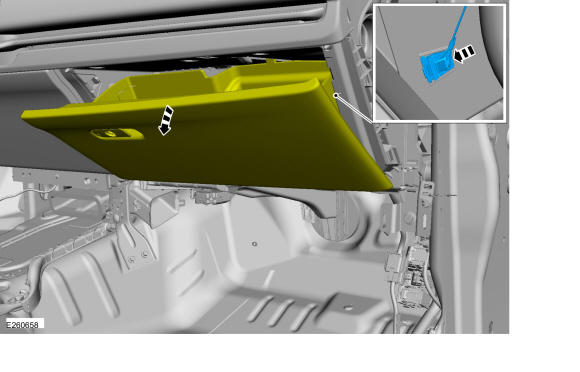

  15. Open the glove compartment door and remove the check strap.
    GFD275359Courtesy of FORD MOTOR COMPANY

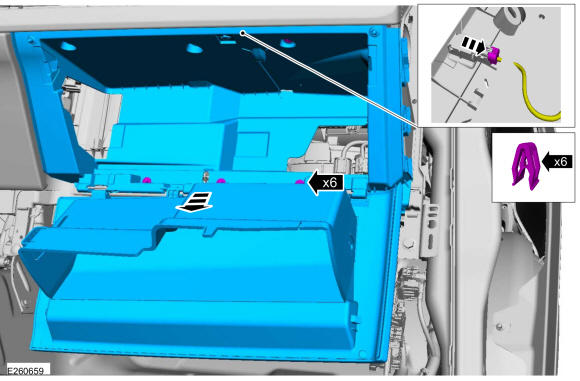

  16. Remove the bolts, release the clips and remove the glove compartment.

    • Disconnect the electrical connector.

      Torque: 25 lb.in (2.8 Nm)

    GFD275360Courtesy of FORD MOTOR COMPANY

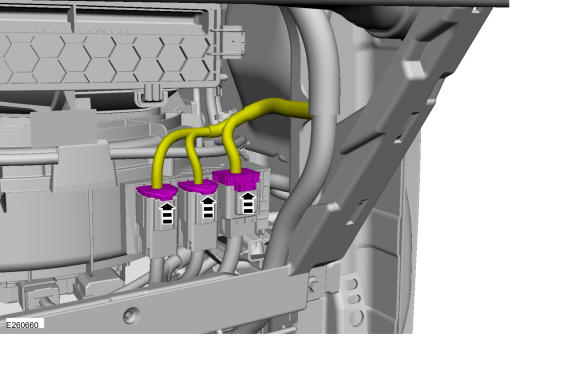

  17. Disconnect the electrical connectors in the RH glove compartment opening.
    GFD275370Courtesy of FORD MOTOR COMPANY

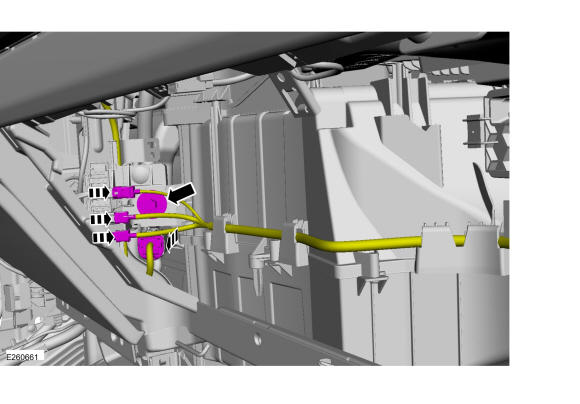

  18. Disconnect the electrical connectors and remove the bolt in the LH glove compartment opening.
    GFD275371Courtesy of FORD MOTOR COMPANY

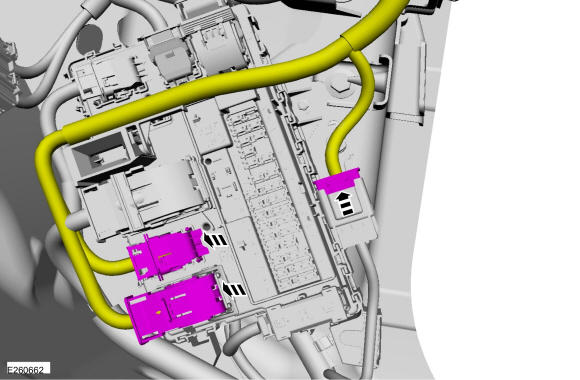

  19. Disconnect the lower RH instrument panel electrical connectors.
    GFD275372Courtesy of FORD MOTOR COMPANY

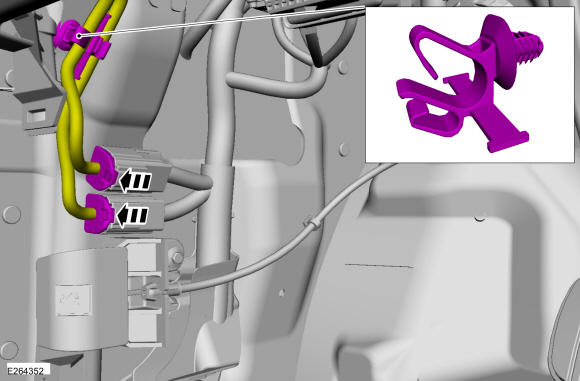

  20. NOTE: Located in the lower LH cowl area.

    Disconnect the electrical connectors and detach the harness retainer.

    GFD275373Courtesy of FORD MOTOR COMPANY
  21. Remove the defrost vent trim panel. Refer to: Defrost Vent Trim Panel .

    Vehicles with HUD (Heads Up Display)

  22. Remove the steering column. Refer to: Steering Column - Remove for Access .

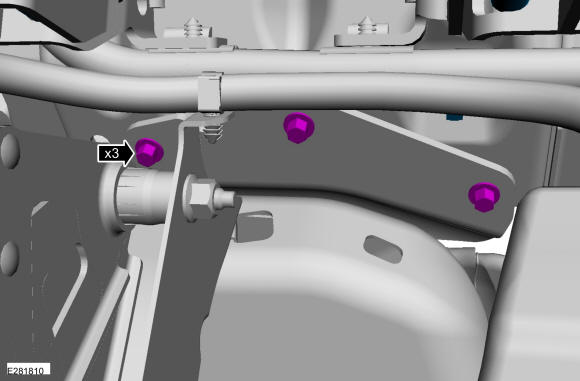

  23. NOTE: Bolts accessed above the steering column.

    Remove the bolts.

    Torque: 155 lb.in (17.5 Nm)

    GFD275374Courtesy of FORD MOTOR COMPANY

    Vehicles without HUD (Heads Up Display)

  24. NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected for damage to the clockspring may result.

    Secure the steering wheel.

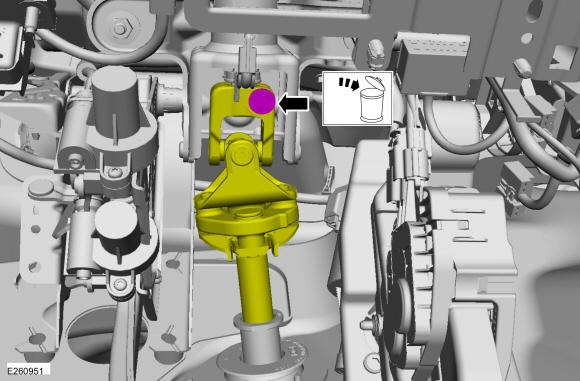

  25. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the bolt and disconnect the upper steering column shaft.

    Torque: 15 lb.ft (21 Nm)

    GFD275375Courtesy of FORD MOTOR COMPANY

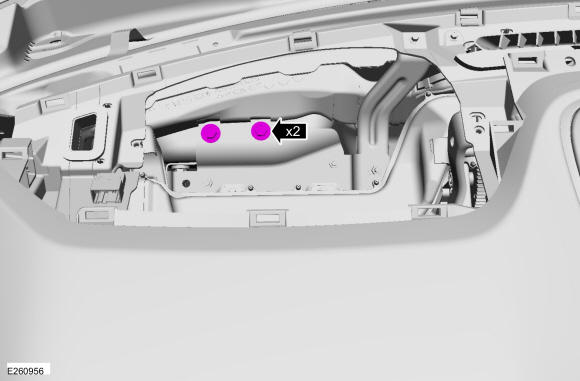

  26. Remove the LH upper instrument panel bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD275376Courtesy of FORD MOTOR COMPANY

    All vehicles

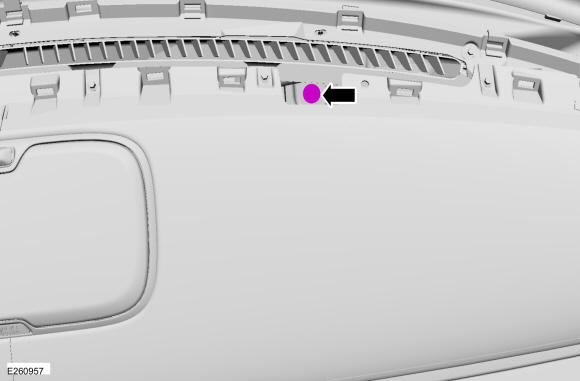

  27. Remove the RH upper instrument panel bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD275377Courtesy of FORD MOTOR COMPANY

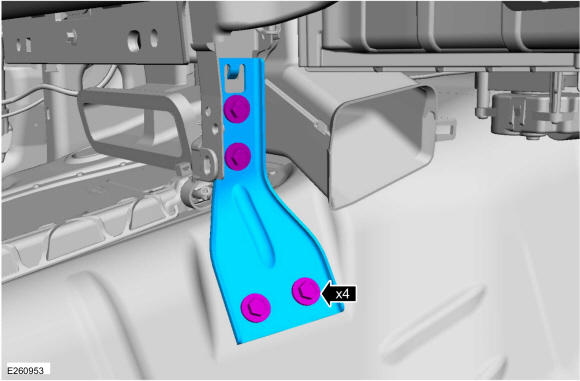

  28. Remove the RH instrument panel center support bolts and bracket.

    Torque: 80 lb.in (9 Nm)

    GFD275378Courtesy of FORD MOTOR COMPANY

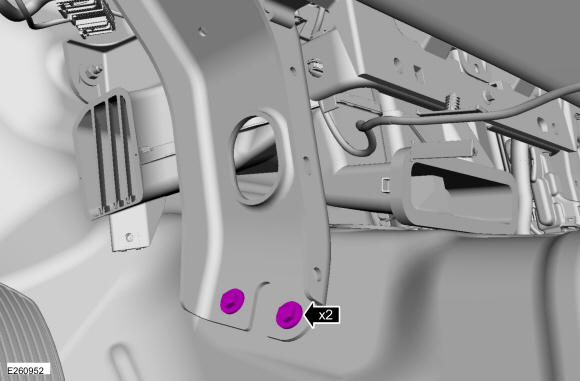

  29. Remove the LH instrument panel center support bolts

    Torque: 80 lb.in (9 Nm)

    GFD275379Courtesy of FORD MOTOR COMPANY

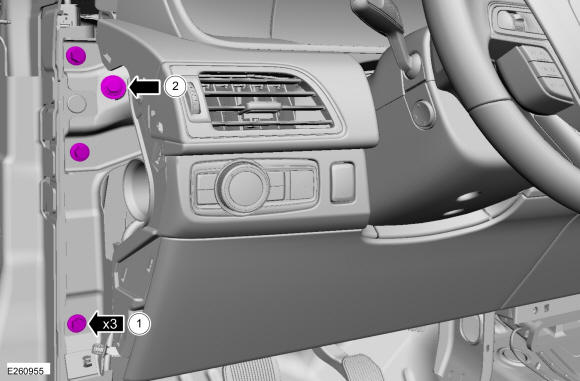

  30. NOTE: Leave one bolt finger tight to hold the instrument panel prior to removal.

    1. Remove the bolt.

      Torque: 18 lb.ft (25 Nm)

    2. Remove the bolt.

      Torque: 18 lb.ft (25 Nm)

    GFD275380Courtesy of FORD MOTOR COMPANY

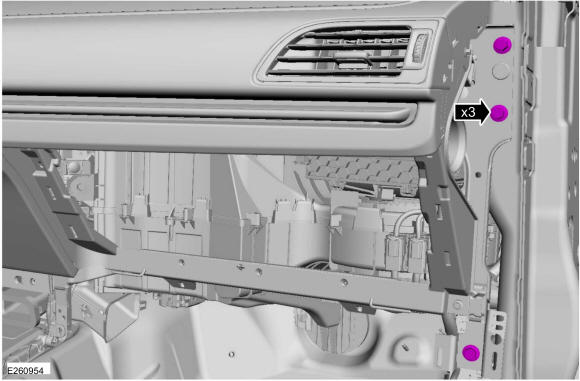

  31. NOTE: Leave one bolt finger tight to hold the instrument panel prior to removal.

    Remove the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD275381Courtesy of FORD MOTOR COMPANY

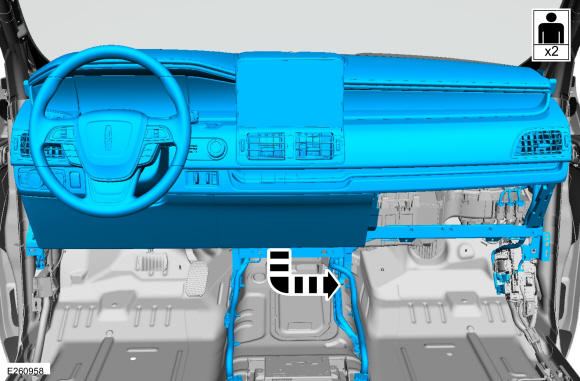

  32. NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out this step.
    NOTE: Make sure not to damage the instrument panel when remove the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

    Rotate the instrument panel face down and remove through the RH front door opening.

GFD275382Courtesy of FORD MOTOR COMPANY
