Floor Console: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles or Front floor console

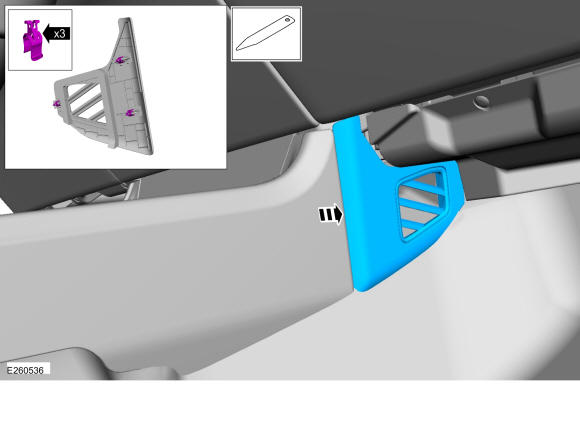

- Remove the RH floor console vent cover. Use the General Equipment: Interior Trim Remover

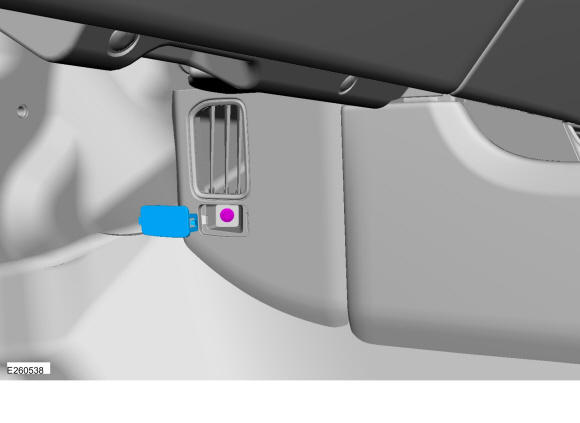

- Remove the LH floor console vent bolt cover and bolt.

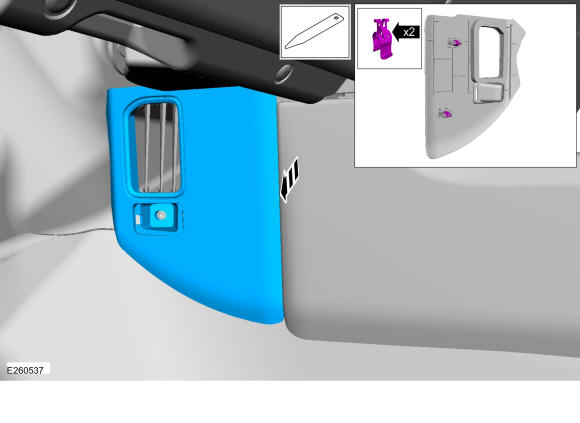

- Remove the LH floor console vent. Use the General Equipment: Interior Trim Remover

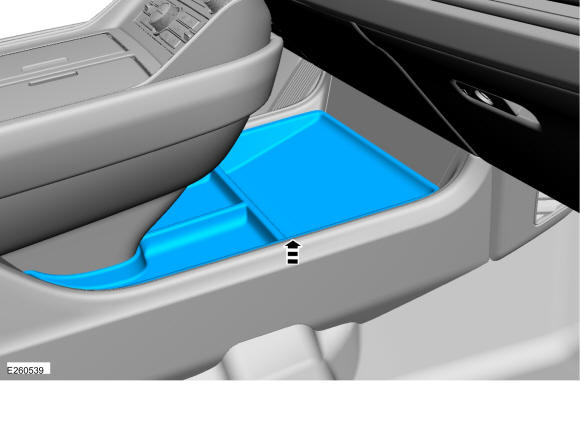

- Remove the floor console lower matt.

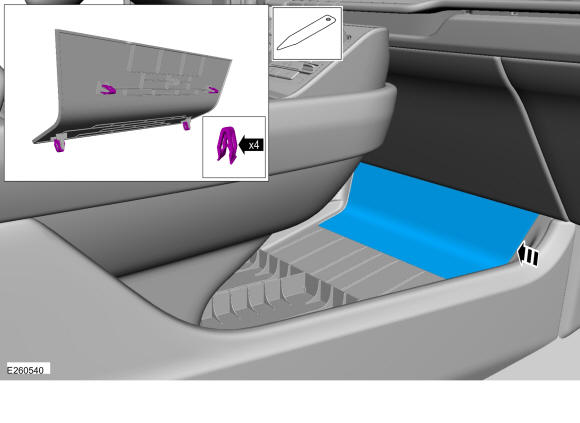

- Release the clips and remove the floor console lower trim panel. Use the General Equipment: Interior Trim Remover
-
NOTE: Position the seat as required.

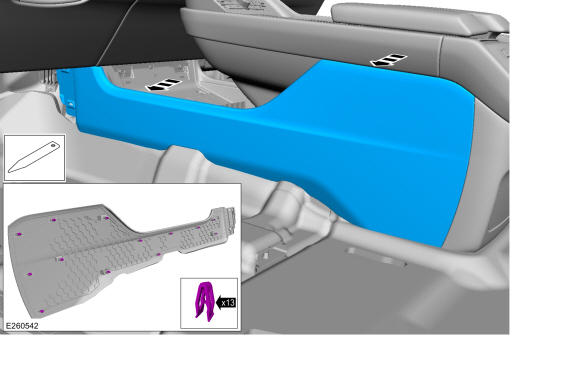

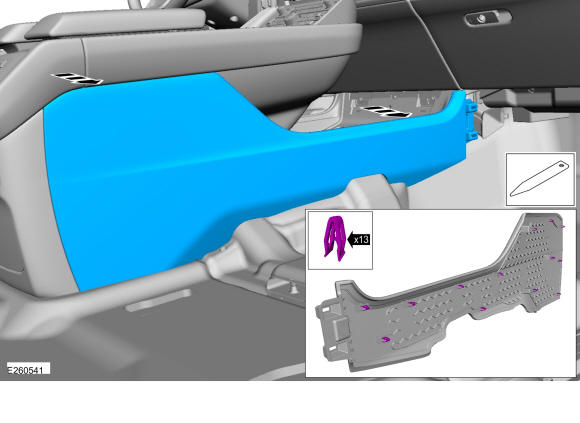

Release the clips and remove the RH floor console side finish panel. Use the General Equipment: Interior Trim Remover

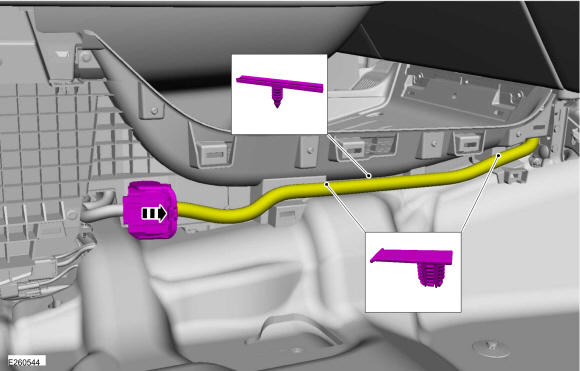

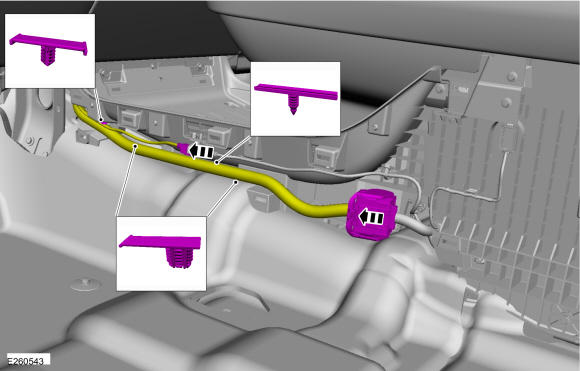

- Disconnect the electrical connector, release the harness retainers and position aside the harness at the floor console lower RH side.
-
NOTE: Position the seat as required.
Release the clips and remove the LH floor console side finish panel. Use the General Equipment: Interior Trim Remover
- Disconnect the electrical connector, release the harness retainers and position aside the harness at the floor console lower LH side.

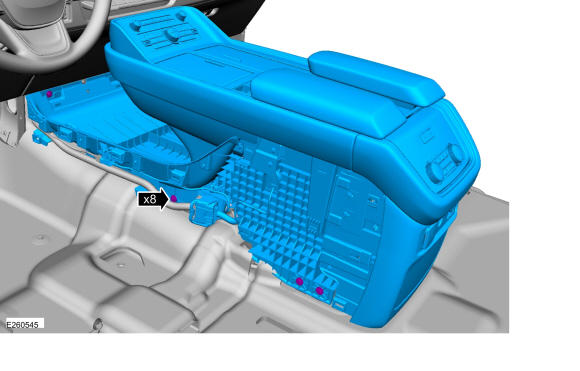

- Remove the bolts and the front floor console.
Torque: 48 lb.in (5.4 Nm)
Rear floor console

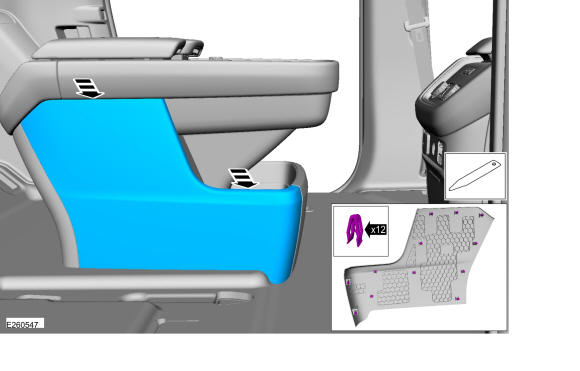

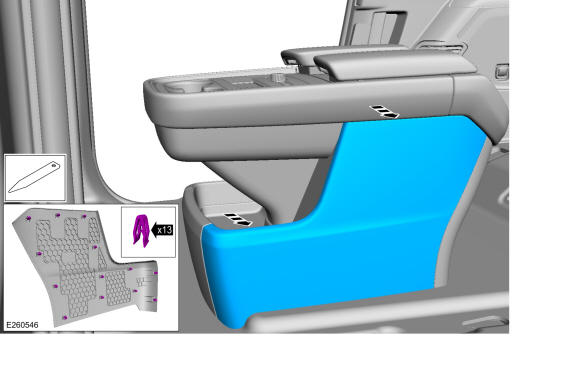

- Release the clips and remove the LH floor console side finish panel. Use the General Equipment: Interior Trim Remover
- Release the clips and remove the RH floor console side finish panel. Use the General Equipment: Interior Trim Remover

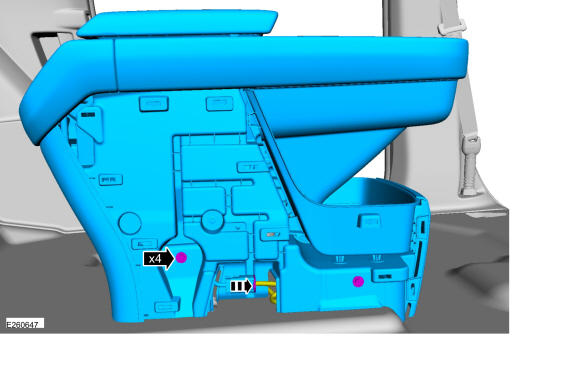

- Remove the bolts and the rear floor console.
- Disconnect the electrical connector.
Torque: 48 lb.in (5.4 Nm)
- Disconnect the electrical connector.
