Driver Door Window Control Switch: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

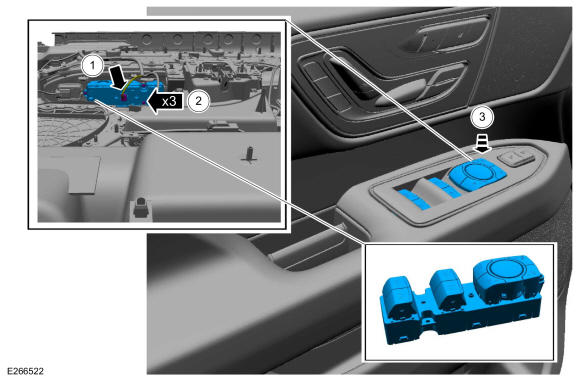

  1. Remove the driver door trim panel. Refer to: Front Door Trim Panel .
  2. Remove the driver door window control switch.

    1. Disconnect the driver door window control switch electrical connector.
    2. Remove the screws from driver door window control switch.
    3. Remove the driver door window control switch from the front door trim panel.

GFD275298Courtesy of FORD MOTOR COMPANY
