Third Row Seat Head Restraint Guide Sleeve: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Double seat shown, single seat similar.

Remove the third row seat head restraint(s). Refer to: Third Row Seat Head Restraint .
NOTE: Follow the unique instructions or graphics for this step in installation.

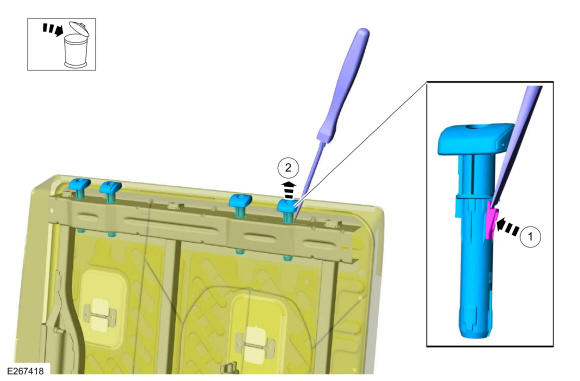

Remove the third row seat head restraint guide sleeve.
1. Release the tab. Use the General Equipment: Flat Headed Screw Driver
2. Remove the head restraint guide sleeve.

Courtesy of FORD MOTOR COMPANY
