Second Row Single Seat Armrest: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

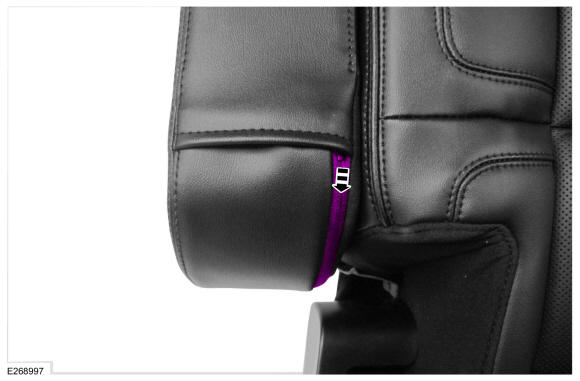

- Unzip the second row single seat armrest cover.
 Courtesy of FORD MOTOR COMPANY
|
- Remove the second row single seat armrest.

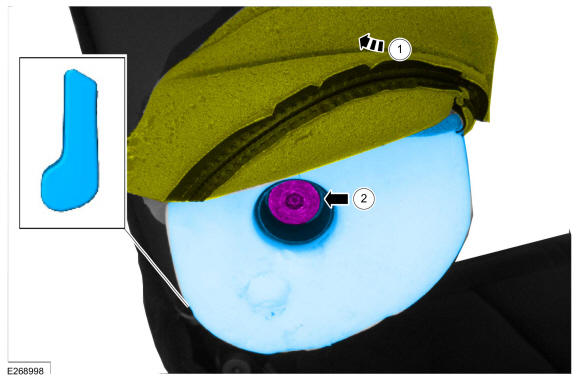

- Invert the single seat armrest cover to access the armrest pivot bolt.
- Remove the bolt.
Torque: 33 lb.ft (45 Nm)
 Courtesy of FORD MOTOR COMPANY
|
