Second Row Seat Manual Release Handle: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH seat shown, others similar.

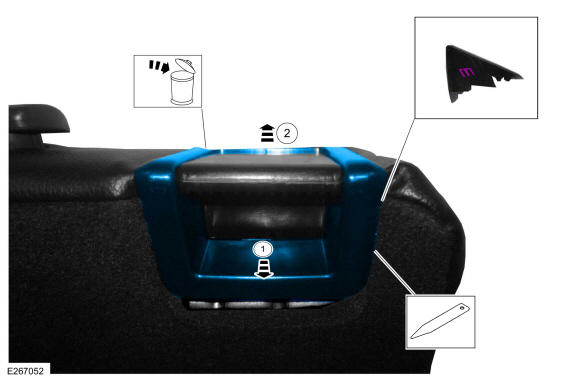

  1. Remove the second row seat manual release handle bezel.

    1. Slide the release handle bezel rearward. Use the General Equipment: Interior Trim Remover
    2. Pull the release handle bezel upward and out.

    GFD275224Courtesy of FORD MOTOR COMPANY

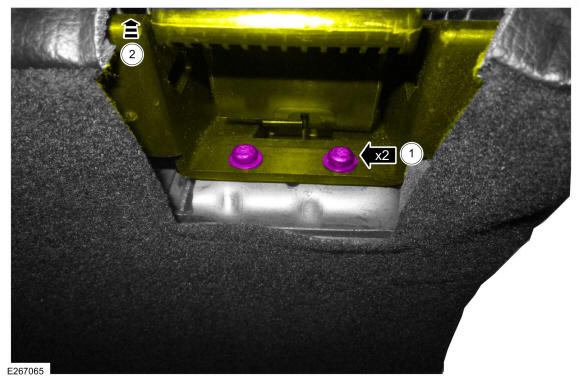

    1. Remove the screws.
    2. Position the second row seat manual release handle up to access the actuator cable.
    GFD275225Courtesy of FORD MOTOR COMPANY

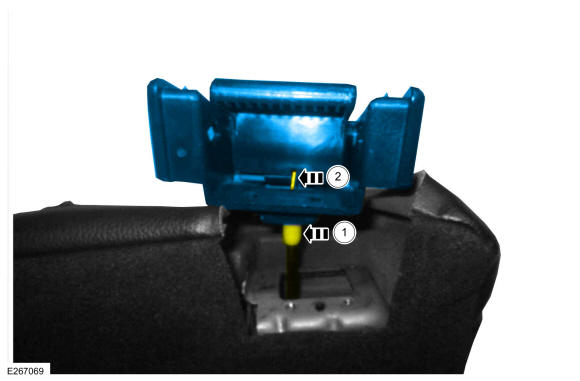

  3. Remove the second row seat manual release handle.

    1. Detach the manual release cable from the second row seat manual release handle retainer.
    2. Position the manual release cable through the second row seat manual release handle opening.

GFD275226Courtesy of FORD MOTOR COMPANY
