Second Row Center Seat Cushion Cover: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the second row center seat. Refer to: Second Row Center Seat .

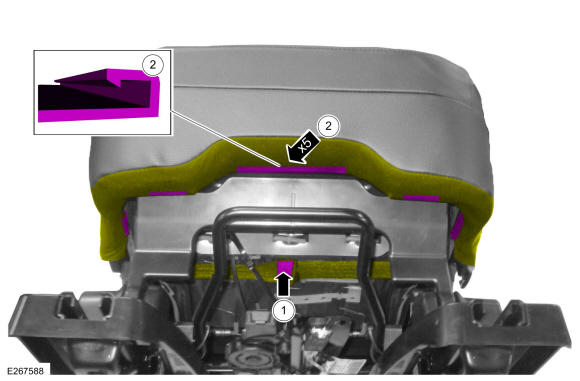

Release the second row center seat cushion cover front and side J-clips.
1. Release the hook-and-loop strip and position the second row center seat cushion strap aside.
2. Detach the J-clips.
Courtesy of FORD MOTOR COMPANY
On both sides. Remove the second row center seat cushion pivot arm covers.
1. Raise the side of the seat cushion cover.
2. Remove the screw.
3. Release the retainers.
Courtesy of FORD MOTOR COMPANY

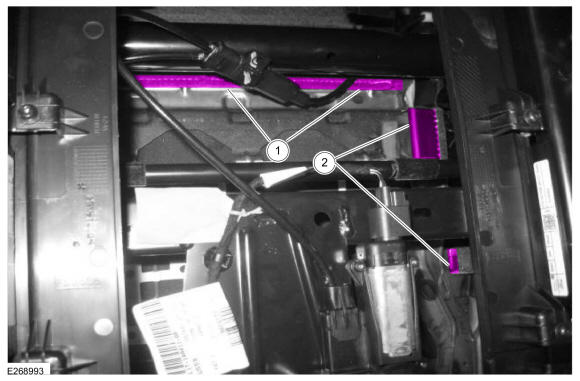

1. Release the second row center seat cushion cover J-clips.
2. On both sides. Detach the J-clips.
Courtesy of FORD MOTOR COMPANY

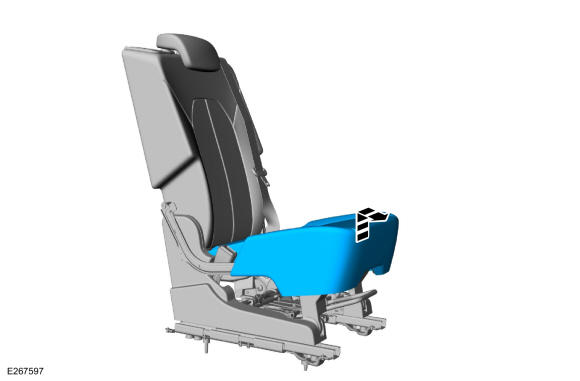

Remove the second row center seat cushion cover and foam.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the cushion cover from the hook-and-arrows, or the hooks can be torn from the cushion foam.

NOTE: Use care when separating the cushion cover from the hook-and-loop strips or the hook-and -loop strips may be torn from the cushion foam.

NOTE: This step is only necessary when installing a new component.

Remove the second row single seat cushion cover.

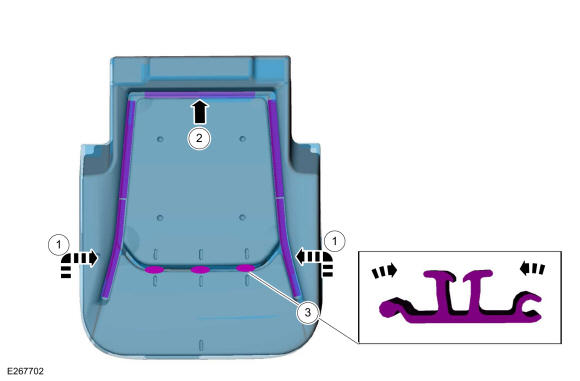

1. Invert the second row center seat cushion cover.
2. Release the hook and loop strips.
3. Release the hook and arrows.

Courtesy of FORD MOTOR COMPANY
